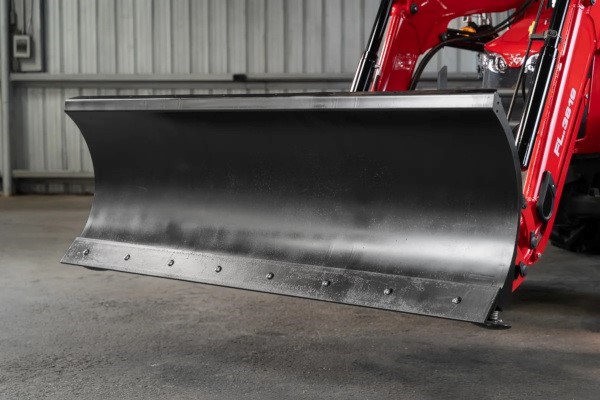

FBXH-108
Overview:
The Front Blade X is for 50 to 90 Horsepower tractors and is used for pushing snow, sand, dirt, manure, gravel, etc. We can build your front blade X with most any type quick attach or pin on connection for no additional charge.
The Front Blade X comes in 84″, 96″ and 108″ widths and angles up to 30 degrees to the right or left. A manual front blade X is available with 5 positions; straight, 15 degrees left or right and 30 degrees left or right.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Key Benefits
- Replaceable Cutting Edge 1/2″ thick by 6″ wide and reversible.
- Skid shoes prevent gouging by maintaining the blade at a preset height.
- Blade height is approximately 30″.
- Spring Trip Blade design so that blade pivots when it hits an obstruction.
- Two additional springs can be added easily.
- Hydraulic blade uses two double acting welded construction cylinders. Includes Cross Over Relief Valve.
Options
- Polyurethane cutting edge available for snow removal.
- Radius dozer cutting edge available.
- Easily add cylinders and hoses to Manual blade to convert to Hydraulic blade
Specifications
| Model | FBXH-108 |
| Width at 30 Degrees | 97" |
| Weight (lbs) | 797 |
| Angle | Hydraulic |
