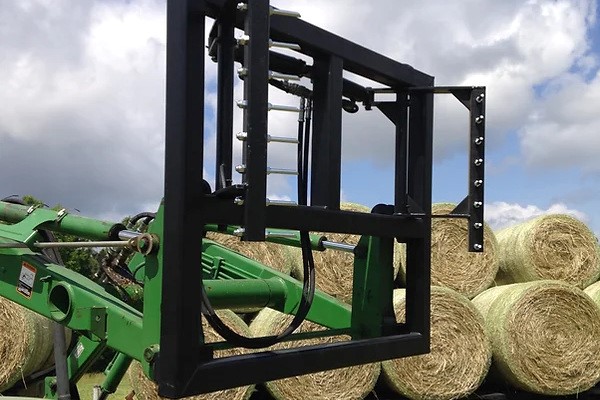

W.R. Long Round Bale Mover "RBM"

KEY BENEFITS:

• Easily moves and repositions round bale hay wrapped with Net Wrap.
• Arms do not hug bale, therefore bale can be tightly positioned next to another bale of hay.
• Allows hay to be stacked as show in photo above allowing more hay storage per square foot.
• Heat treated bushings with stress proof pins.
• Two welded construction double acting cylinders standard.
• Barn show in photo can hold 620 bales stored horizontally and 720 bales stored vertical.
• Easily replaceable fingers.
• The Round Bale of hay must be wrapped tight for the RBM to pick it up without the bale coming apart. The larger and heavier the bale of hay the more important it is for the bale to be tight.
• With a tight bale of hay the RBM will handle 4' up to 5' foot diameter bales easily again depending on the strength of the bale of hay. The RBM-24 is a better choice for bales 5 to 6 foot in diameter.
• If you choose the RBM and later decide you actually need the RBM-24 then a set of extensions can be purchased to extend your RBM arm length an additional 14".
• The length and thickness of the hay is also a factor in the strength of the bale of hay.

​

Options include Valve Kit, Hydraulic Quick Coupler Kit, and bulk head plate and fittings.
