Lift & Pull Type Box Scrapers
TB25 Series Box Blades
Overview:

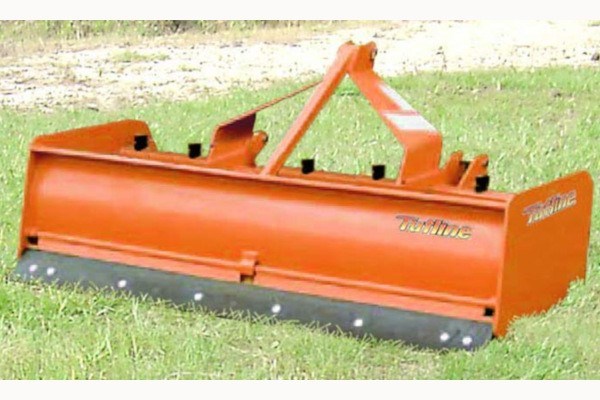

Tufline’s TB25 Series Box Scrapers are designed for years of producing professional results with every application. All units are equipped with adjustable high strength alloy steel scarifier shanks and 2 heat treated 1080 grade reversible cutting edges. Each unit has radius formed moldboards for efficient loading and unloading of dirt and high strength adjustable scarifier shanks with a high clearance scarifier bar for less trash build-up.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- Designed for 50 to 80 horsepower tractors
- 1/2” X 18” X 33” End Plates – standard
- 1/4” Hinged Moldboard
- Category 1 & 2 Quick Hitch
- Notched, 3 position scarifier shanks
Specifications
| MODEL | TB25-72 | TB25-84 | TB25-96 |
| 3-Point Hitch | Cat. I & II Quick Hitch (iMatch Compatible) | Cat. I & II Quick Hitch (iMatch Compatible) | Cat. I & II Quick Hitch (iMatch Compatible) |
| Working Width | 72" | 84" | 96" |
| Tractor HP (MAX) | 50-65 HP | 55-75 HP | 65-80 HP |
| Approx. Operating Weight | 790 lbs | 885 lbs | 1010 lbs |
| Capacity | 21 cu. ft. | 24.5 cu. ft | 28 cu. ft. |
| Cutting Edge | 1/2" x 6' Reversible | 1/2" x 6' Reversible | 1/2" x 6' Reversible |
| End Plate Thickness | 1/2" | 1/2" | 1/2" |
| Moldboard Thickness | 1/4" | 1/4" | 1/4" |
| Assembly Time | 15 min. | 15 min. | 15 min. |
