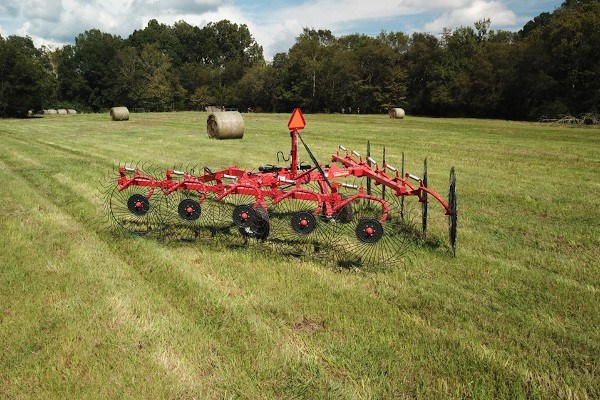

TVR High Capacity Rakes
Overview:
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
| FEATURES |
| Independent rake wheel adjustments |
| Easy window adjustment |
| Rake wheel ground pressure adjustment |
| Central finger wheel kit (optional) |
| Adjustment of the swath width |
| High Clearance frame type |
| Finger wheels follow the contours of terrain with the result of a perfect raking. |
| Quick variable windrow adjustments without tools |
| Rake wheel ground pressure can be fine-tuned to ensure clean and efficient raking in uneven terrain |
| Enables the middle swath to be raked and fluffed |
| Fast and easy: one tie rod on each side enables the width to be adjusted with out any tool |
| Maximum flexibility of use |
Specifications
| Model | TVR 108 | TVR 110 | TVR 112 |
| Number of Finger Wheels | 8 | 10 | 12 |
| Tine Wheel Diameter - inches | 9/32" | 9/32" | 9/32" |
| Min working Width - ft | 16' 9" | 17' 8" | 19' 9" |
| Max Working Width - ft | 19' | 20' 8" | 24' 2" |
| Transport Width - ft | 11' | 11' 4" | 11' 6" |
| Transport Height - ft | 8' 4" | 8' 4" | 8' 4" |
| Swath Width (min-max) - ft | 32" - 83" | 32" - 83" | 32" - 83" |
| Rake Wheel Diameter - inches | 55" | 55" | 55" |
| Tires | 205/75-15 | 205/75-15 | 205/75-15 |
| Required Power (hp) | 30 HP | 30 HP | 50 HP |
| Light Kit | Standard | Standard | Standard |
| Weight - lbs | 1687 | 2019 | 2295 |
