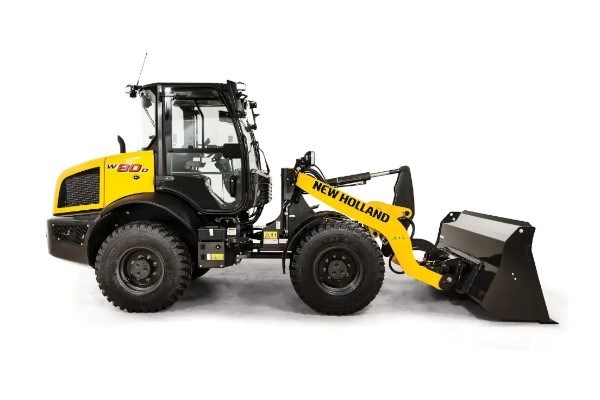

New Holland Ag W80D

BREAKOUT TOUGH PILES

New Holland's Z-Bar linkage is a rugged, simple design ideal for high-production load-and-carry applications, like moving and setting drainage pipe or stacking landscape timbers. Model W80D provides a maximum of 10,629 lbf (4821 kgF) in breakout force and yields 5.2 in (133 mm) of digging depth. Plus, lofty lifting capacities of 7999 lb (3628 kg) at full height, 9964 lb (4520 kg) at maximum reach, and 12,770 lb (5792 kg) on ground.

TAKE ON MORE JOBS WITH CONFIDENCE

Exceptional maneuverability and a tighter turning radius are essential on equipment operating on small jobsites and in constricted spaces. With this in mind, the W80D was designed to compactly conquer due to its reduced machine length of 232.5 in (5905 mm), machine width of 73.2 in (1860 mm) and operating height measuring up to 175.1 in (4448 mm).

A lower center of gravity and the 87.6 (2225 mm) wheelbase increase stability on New Holland compact wheel loaders so you can lift and move larger loads, travel smoothly and quickly, and operate with more confidence.

EFFICIENT STAGE V ENGINES

With 74 gross HP (55 kW) and 227 ft-lb (308 N⋅m) of peak torque @1400 rpm on hand, New Holland compact wheel loader W80D helps you work faster and more productively.

When servicing is required, A tilt-up hood, ground-level access to maintenance points and long service intervals reduce the time your operators spend on routine maintenance tasks. Radiator, filters, hydraulics, oil cooler, engine — they’re all easily accessible.

ELECTRO-HYDRAULIC CONVENIENCE

Whether you choose a compact wheel loader with a comfortable cab or an economical ROPS platform, you’ll enjoy electro-hydraulic controls that increase bucket and boom control and provide easy vehicle-inching capability. The inch and brake pedal allows constant engine rpm power to be diverted to the loader’s hydraulics without disconnecting the drive. The hydrostatic transmission provides precise speed control with minimum shifting, so operators can focus on the task at hand.

Electro-hydraulic controls provide more loader control, letting you:

• Increase control of the bucket and boom, whether separately or in combined movement
• Take more control over bucket-shake performance
• Adjust and fine-tune operation to the way you work and increase operator comfort in all jobs
• Improve control of the machine during inching, making it easier to get into optimum position on the jobsite
• Take advantage of electro-hydraulic lift/tilt for even more operation proficiency
• Optimize vehicle-direction inversion (smoothness vs. quickness)

TOOLS THAT TACKLE TOUGH TASKS

D Series compact wheel loaders are compatible with a full line of buckets, attachments and accessories available from New Holland and numerous third-party manufacturers. Whether you need a broom for landscaping, a dozer blade to move snow, or a bucket for concrete work, your New Holland dealer can help you source the right tool.

Waste no time and avoid the elements by quickly switching attachments from the comfort of the cab, thanks to an integrated hydraulic quick-coupler.

MORE STABILITY ON THE JOB

All New Holland compact wheel loaders are designed to deliver greater stability, letting you lift and move bigger loads, operate with more confidence, and travel more smoothly even in tough conditions.

When moving material from stockpiles to trucks or around the jobsite, the Auto Ride control option provides a more comfortable ride on rough ground with less load spilling and wear and tear. It engages automatically when ground speed reaches 2.5 mph and automatically disengages at slower speeds for loading and unloading.

Ideal for tasks such as plowing snow and cold planing, the high-flow option with creep speed provides maximum hydraulic flow at a constant speed up to 3.6 mph (5.9 km/h). For greater control and performance, optional creep speed allows the operator to set the engine’s RPM independent of ground speed.

Complete the package with a front electrical socket and case drain. The return-to-dig option quickly returns the bucket to the dig position after dumping, so you’re always ready for the next operation.

OPTIMIZED OPERATOR ENVIRONMENT

The cab on a D Series compact wheel loader packs more comfort and ease of operation into every inch. The design incorporates spacious dimensions with natural, ergonomic controls to keep you working comfortably and productively all day long. Wide steps provide easy entry and exit. The seat, steering column and armrest are adjustable, and the standard LCD display puts information just where you want it. A high-performance heater/defroster is standard. Add optional air-conditioning for operator comfort on the hottest working days.
