Features
Improved Handling

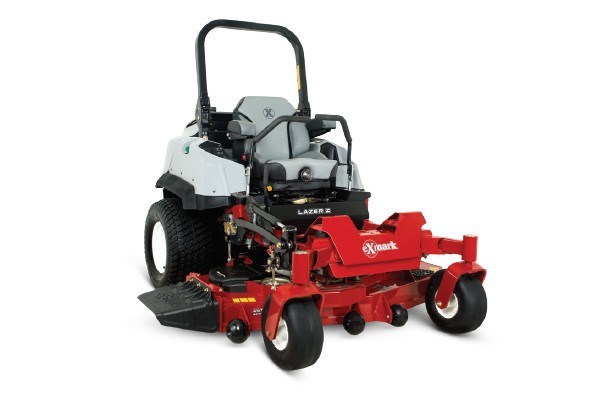

The engine and radiator have been placed lower to the ground in the redesigned Lazer Z Diesel. This provides an even lower center of gravity leading to improved traction and a smoother ride.
Reduced Maintenance and Service
With an efficient and robust powertrain system, in addition to eliminating drive belts, these machines have less maintenance and longer service intervals. And the tool-less belt access and removable floor pan makes servicing easy.
Fuel Capacity
For longer work intervals, the Lazer Z Diesel has a 12.0-gallon capacity with two tanks. This will keep you mowing longer with fewer fill-ups.
Hydraulic Deck Lift
Standard on all diesel units, the hydraulic deck lift provides for easy cutting height adjustment and quick transport.
Tire Size / Ground Speed
The 26" x 12"-12" drive tires allow you to reach speeds up to 12.5 mph on machines equipped with the 1.6 Liter Common Rail engine. The large drive tires also provide superior traction and handling, giving you the ability to manage diverse terrain and conditions.
Productivity
The robust engine power and large deck sizes make these mowers Exmark's most productive diesel machines ever. They are a great solution for universities, municipalities and other sizeable properties.
On-Board Intelligence
The next generation RED leverages the latest technologies to deliver increased machine efficiency, ease of use and durability. This technology provides users an increased ability to control mower power and efficiency with defined performance modes.
Leading Zero-Turn. Strong Warranty.
Purchase an Exmark Lazer Z Diesel mower with confidence by taking advantage of the protection Exmark provides for you with our five year limited warranty. Now standard on all Exmark Lazer Z Diesel mowers sold in the U.S. or Canada. For complete details, visit your local dealer.
Specifications
| Equipment | |
| Blade Spindles | No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm (.98") diameter spindle shaft, double row bearings, top and bottom, and splined blade driver. |
| Drive Tires | 26x12-12, 6ply Multi Trac® |
| Tractor Frame | Welded, heavy-duty 1.5" x 3" x 3/16" tubular steel. |
| Steering Control | Hydraulically dampened twin levers, adjust fore and aft., also adjustable to 2 height positions. Adjustable dampeners (3 positions) to customize drive responsiveness. |
| Front Caster Tires | 15 x 6.0-6, smooth-tread, semi-pneumatic. |
| Parking Brake | Lever-actuated internal wet disc brake. |
| Seat | Deluxe, two-tone, bolstered suspension seat with Elastomeric Vibration Control material. Mounted on innovative Seat Isolation System that provides operator isolation in all three planes of motion as well as fore-aft slide and seat flip-up. |
| Electrical | 12-volt battery with 55-amp alternator. |
| Onboard Intelligence | RED Technology |
| Standard Features | 12-volt plug-in, engine hour meter and cup holder |
| UPC | 193308000770 |
| Power Components | |
| Engine Brand | Yanmar |
| Engine Model | 3TNV80FT |
| Engine Displacement | 1,267 |
| Engine Series | TNV |
| Engine Type | Electronically Governed IDI Turbo Diesel |
| Engine Speed | 2,600 RPM |
| Air Filter | Heavy-duty canister air filtration system with electronic vacuum sensor |
| Fuel Type | Diesel |
| Fuel Capacity | 12-gallon (45.4-L), side fuel tanks |
| Fuel Indicator | Yes - mechanical float type |
| Drive | Hydro-Drive |
| Drive Description | Kanzaki KPS-18T Transmission, 16-quart oil capacity, spin-on filter. 18 cc shoe type pumps and 17.84 cubic inch Hydro-Gear HGM-18 motors, hydraulic oil cooler. |
| Speed | Infinitely variable speed selection from 0–11.0 mph (18 kmph) forward, 0–6 mph (10 kmph) reverse. |
| Carb Compliant | Yes |
| Deck Lift | Hydraulic |
| Safety Package | Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators. |
| ROPS | 2-post foldable ROPS standard with seat belt and latch. |
| PTO Engagement | Integrated wet clutch system in transmission, connected to right angle gearbox on deck via drive shaft |
| Drive Wheel Release | Allows unit movement without engine running. |
| Casters | .50" thick caster yoke arms. |
| Engine Spec | ZMTR1 |
| Decks | |
| Width / Cutting Deck | 60" |
| Deck Style | Floating Deck |
| Deck Style Description | Full-floating UltraCut Series 4. Side discharge standard, with molded discharge chute and option to bag or mulch. |
| Deck Construction | 10-gauge top that is formed and continuously seam welded, 7-gauge side skirt and 7-gauge reinforced spindle mounting locations for improved strength and reduced weight. |
| Blade Tip Speed | Approximately 17,600 fpm |
| Cutting Heights | 1.0" (2.5 cm) to 5.5" (11.8 cm) in 0.25" (0.64 cm) increments adjustable from operator’s seat. |
| Blades | 3 Blades at 20.50" Length |
| Dimensions | |
| Width | 72.8 in. (184.9 cm) |
| Length | 96.3 in. (244.6 cm) |
| Height | 71.8 in. (182.4 cm) |
| Curb Weight | 1915 lbs. |
Accessories and Attachments
Hitch Kit
Hitch kit (NLZD)
Flasher Light Kit
Maximize both daytime and nighttime visibility with this low-profile, LED strobe kit.
LED Light Kit (not compatible with 135-2473)
Better and brighter than ever, this quick install light kit keeps your productivity going into the night. A powerful light without the use of significant amperage capacity.
The aerodynamically designed deck, baffles and blades create airflow patterns that circulate leaves and grass for repeated cuttings and even dispersal deep into the turf. Mulching baffles also keep the underside clean, which reduces grass buildup and clumping.
Operator Controlled Discharge (foot)
Operator Controlled Discharge (Foot)
Easy to use, 15" stroke Bulldog jack, gives you plenty of room to change blades or perform routine deck cleaning (jack mount receiver not included).
Trash Container (Not compatible with 135-7076)
Trash container (NLZD)
Reflective slow moving vehicle sign ensures that you and your mower are highly visible.
Easily mounts to Rollover Protection System (ROPS). Made of heavy-duty, water- repellent canvas for maximum durability. Easily removable for transport. Fits all Lazer Z and Pioneer models. (Does not fit Quest.) (Replaces 116-0513)
Protect your engine and enhance the appearance of your machine with this rear guard and bumper kit.
Jack Mount Receiver
Safely access the underside of your zero-turn mower’s deck. Used with Exmark's Bulldog jack, attaches for smooth lift without hassle or strain, thanks to its comfortable, ergonomic design. Built for years of reliability.
Fits 72" models. Customize your property with consistent and professional striping using a smooth operating roller design. Installs quickly, using existing mounting points, and easily adjusts for varying cutting height settings. Does not affect your ability to get up and over curbs.
UltraVac Completing Kit
UltraVac Completing Kit, 604-80T (NLZD)
Switch between bagging and side discharge with quick-attach capability. Avoid clogging with larger diameter tubes. Compact design minimizes trailer space for easy maneuverability. Sealed hood reduces dust
