RZX801GKA524A3
Overview:

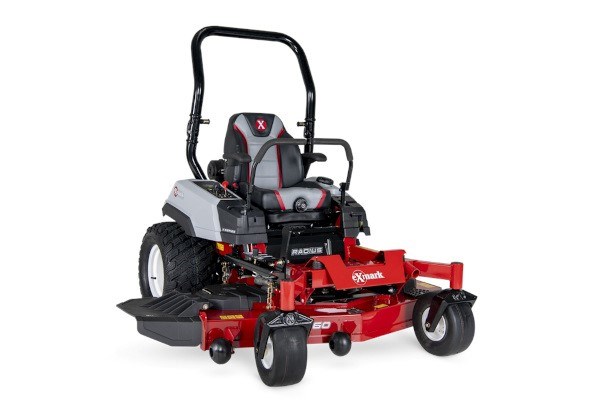

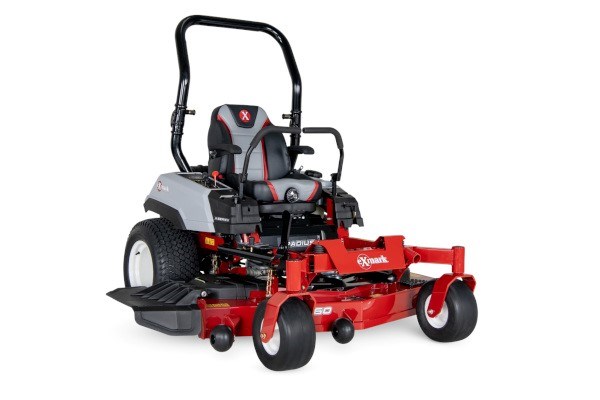

Radius X-Series with 25.5 HP* Kawasaki FX801 Engine and 52” Ultracut Series 4 Deck
If you’re looking for the power and productivity of a premium commercial mower on a budget, you’re looking for the new Radius X-Series. It combines features first proven on our premier Lazer Z models with the unbeatable value you’ve come to expect from Radius.
Choose from 52- or 60-inch UltraCut Series 4 side-discharge cutting decks and premium Kawasaki commercial engines. Integrated high-capacity HydroGear transmissions work with aggressive 24-inch Kenda drive tires to deliver unmatched traction and control, with ground speeds of up to 10 mph. Large semi-pneumatic caster tires, upgraded cast steel caster forks and tapered caster pivot bearings provide years of maintenance-free performance. And with an adjustable full-suspension operator seat and isolated floor pan, the Radius X-Series delivers enhanced operator comfort that’s ideal for long work days.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
UltraCut Series 4 Cutting Deck
Fabricated and fully welded of high-strength steel, the UltraCut Series 4 cutting deck features Exmark’s exclusive Flow-Control baffles for Exmark Signature cut quality. Maintenance-free sealed bearing spindle assemblies and upgraded double-capture anti-scalp rollers offer increased durability with reduced maintenance requirements.
Kawasaki Commercial Engines
Radius X-Series takes commercial power and performance to the next level with premium Kawasaki V-twin engines.
High-Back Suspension Seat
Radius X-Series features a deluxe high-back operator seat with three inches of adjustable suspension, plus an EVC stretch foam base and iso mounts at the seat base for superior all-day mowing comfort.
Heavy-Duty Fabricated Steel Frame
Fabricated and fully welded of high-strength rectangular steel tubing, the Radius frame places the heaviest components –– engine, transmission and fuel tank –– low and centralized in the frame. This lowers the machine’s center of gravity for increased traction and stability. New steel engine guards increase engine protection at the sides and rear of the machine, while also being easily removable for service access.
Upgraded Caster Assemblies
Radius X-Series models feature upgraded caster assemblies featuring maintenance-free tapered caster pivot bearings, with cast steel caster forks and large, semi-pneumatic caster tires.
Specifications
| Equipment | |
| UPC | 193308225203 |
| Onboard Intelligence | none |
| Starter | Electric |
| Steering Control | Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment. |
| Front Caster Tires | 13 x 6.5-6, smooth tread, pneumatic. Sealed Taper Roller Bearings |
| Drive Tires | 24 x 12-12 K3012 |
| Parking Brake | Lever-actuated pawl brake. |
| Tractor Frame | Unibody, welded, heavy-duty 2" X 3" rectangular tubular steel. |
| Blade Spindles | No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm(.98")diameter spindle shaft and splined blade driver. |
| Electrical | 12-volt battery with 15-amp alternator. |
| Cup Holder | Yes |
| Standard Features | Engine hour meter, cup holder, tow hitch and jack receiver |
| Seat | Deluxe suspension (adjustable spring suspension) seat with high back, molded foam flip-up armrests, and integral safety switch |
| Power Components | |
| Transmission Speeds | Infinitely Variable |
| Engine Brand | Kawasaki |
| Transmission Brand | Hydro-Gear |
| Engine Model | FX801 |
| Engine Displacement | 852cc |
| Transmission | Hydrostatic |
| Engine Series | V-Twin |
| Fuel System | Carbureted |
| Speed | Infinitely variable speed selection from 0-10.0 mph (16.1 kmph) forward, 0-6.0 mph (9.7kmph) reverse. |
| Drive | Hydro-Drive |
| Engine Spec | FX801V-S04-R |
| Engine Speed | 3,820 rpm |
| Air Filter | Heavy-duty canister air filtration system |
| Fuel Capacity | 7-gallon (26.5-L) single fuel tank with single fill location. |
| Drive Description | Dual Hydro Gear ZT3400, hydrostatic transmission with charge pumps, relief valves and independent, replaceable filters. |
| Fuel Type | Gas Carbureted |
| PTO Engagement | MagStop electromagnetic 200-ft-lb clutch |
| Drive System | Hydro-Drive |
| Drive Wheel Release | Allows unit movement without engine running. |
| Fuel Indicator | Translucent Visual |
| Drive Wheel Release | Allows unit movement without engine running. |
| Deck Lift | Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position. |
| Carb Compliant | No |
| Safety Package | Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators. |
| ROPS | 2-post foldable ROPS standard with seat belt and latch. |
| Decks | |
| Deck Style | Floating Deck |
| Deck Style Description | Full-floating UltraCut Series 4. Side discharge standard, with molded discharge chute and option to bag or mulch. |
| Width / Cutting Deck | 52" |
| Deck Construction | 10-gauge high strength alloy top that is formed and continuously seam welded, with 7-gauge side skirt. |
| Cutting Heights | 1.5" (3.8 cm) to 5.0" (12.7 cm) in 0.25" (.6 cm) increments, adjustable from operator's seat. |
| Blade Tip Speed | Approximately 18,500 fpm. |
| Blades | 3 Blades at 18.00" Length |
| Bag Capacity | N/A |
| Dimensions | |
| Width | 64.3 in (163.3 cm) |
| Height | 70 in (178 cm) |
| Length | 80.3in (204.0 cm) |
| Curb Weight | 992 |
