RZE724GKC60300
Overview:

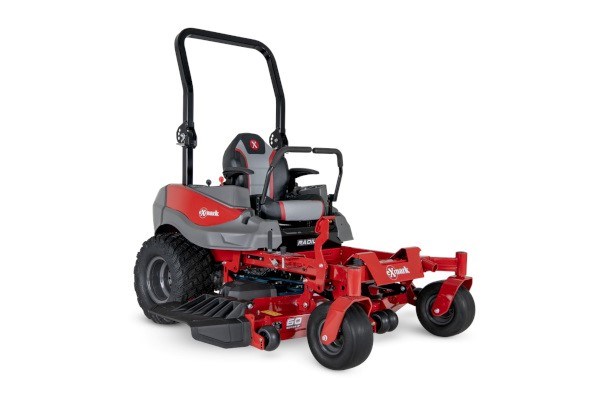

Radius E-Series with 24 HP* Kohler 7000 Engine and 60” UltraCut Series 3 Deck
With the performance you expect from Exmark, new features and a fresh new look, the Radius E-Series is the right choice for home and acreage owners looking for a commercial-grade mower without breaking the bank. Choose from 48-, 54-, or 60-inch Exmark Series 2+ cutting decks and a wide range of available accessories for maximum versatility. And with new Kawasaki V-twin engine options, Radius E-Series models deliver more performance per dollar than ever before
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Adjustable Rollover Protection System (ROPS)
New square tubing rollover protection system (ROPS) is easily foldable for storage.
Height of Cut Made Easy
Exmark’s patented cut height adjustment system is very easy to use, enabling the user to quickly set height of cut with unmatched accuracy, right from the operator seat.
High-Strength Steel Frame
Fabricated and fully welded of high-strength rectangular steel tubing, the Radius frame places the heaviest components –– engine, transmission and fuel tank –– low and centralized in the frame. This lowers the machine’s center of gravity for increased traction and stability. New steel engine guards increase engine protection at the sides and rear of the machine, while also being easily removable for service access.
Series 2+ Cutting Deck
Fabricated and fully welded from high-strength steel, the Exmark Series 2+ cutting decks feature maintenance-free sealed bearing spindle assemblies and durable double-capture anti-scalp rollers to deliver the cut quality and durability you expect from Exmark.
Integrated Hydro Pump and Motor Design
Dual HydroGear ZT-2800 hydro transmissions feature an integrated pump and motor design for maximum efficiency, long-term reliability and ground speeds of up to 8 mph.
Large Drive and Caster Tires
Radius E-Series models are equipped with large, smooth-riding 22-inch drive tires and 13-inch caster tires.
Specifications
| MODEL | RZE724GKC60300 |
| EQUIPMENT | |
| Width / Cutting Deck | 60" |
| Drive | Hydro-Drive |
| Starter | Electric |
| Steering Control | Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment. |
| Caster Forks | .375" thick caster yoke arms. |
| Front Caster Tires | 13 x 6.5-6, smooth tread, pneumatic. Bushings |
| Drive Tires | 22 x 10.5-12 Super Turf TL |
| Safety Package | Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators. |
| Parking Brake | Lever-actuated pawl brake. |
| Tractor Frame | Unibody, welded, heavy-duty 2" X 3" rectangular tubular steel. |
| Blade Spindles | No maintenance, sealed and non-greasable spindles; 7.30"-diameter cutter housing contains 17mm (.67") diameter spindle shaft and hex blade drive. |
| Cup Holder | Yes |
| Electrical | 12-volt battery with 15-amp alternator. |
| Standard Features | Engine hour meter, cup holder, tow hitch and jack receiver |
| Seat | High back seat with foam padded seat cushion, armrests and integral safety switch |
| POWER COMPONENTS | |
| Engine Brand | Kohler |
| Transmission Brand | Hydro-Gear |
| Transmission Speeds | Infinitely Variable |
| Engine Model | KT724 |
| Engine Displacement | 725 |
| Speed | Infinitely variable speed selection from 0-8.0 mph forward, 0-5.0 mph reverse |
| Transmission | Hydrostatic |
| Air Filter | Standard Engine Manufacturer's air filter |
| Fuel Capacity | 7-gallon single fuel tank with single fill location |
| Drive Description | Dual Hydro Gear ZT3100, hydrostatic transmission with charge pumps, relief valves and independent, replaceable filters. |
| Fuel Type | Gas Carbureted |
| PTO Engagement | MagStop electromagnetic 125-ft-lb clutch |
| Drive System | Hydro-Drive |
| Drive Wheel Release | Allows unit movement without engine running. |
| Fuel Indicator | Translucent Visual |
| Deck Lift | Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position. |
| Carb Compliant | No |
| ROPS | 2-post foldable ROPS standard with seat belt and latch. |
| DECKS | |
| Deck Style | Floating Deck |
| Deck Style Description | Full-floating UltraCut Series 3. Side discharge standard, with molded discharge chute and option to bag or mulch. |
| Deck Construction | 10-gauge high strength alloy top that is formed and continuously seam welded, with 7-gauge side skirt. |
| Cutting Heights | 1.5" to 5.0" in 0.25" increments |
| Blade Tip Speed | Approximately 18,500 fpm |
| Bag Capacity | M/A |
| Blades | 3 Blades at 20.50" Length |
| DIMENSIONS | |
| Width | 72.3" |
| Height | 69.7" |
| Curb Weight | 901 |
| Length | 80.5" |
