QZX735GKC48300
Overview:

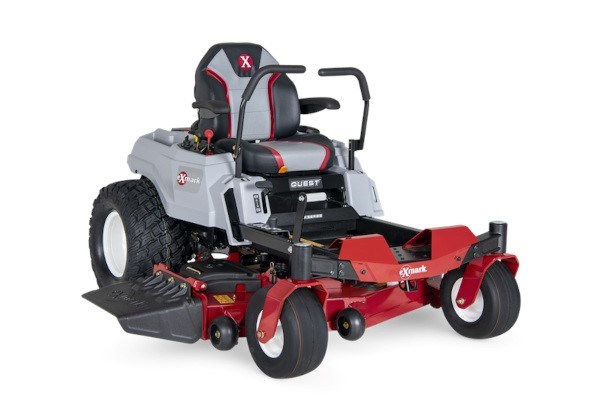

Looking for a residential zero-turn mower with commercial features and performance? You’ve found it in the new Quest X-Series. The powerful Kohler engine, upgraded 48-inch UltraCut Series 3 cutting deck and heavy-duty Hydro-Gear transmission enable Quest X-Series to cut at up to 8 mph. When combined with the incredible maneuverability of the low center of gravity frame design and the smooth rolling of the large drive and caster tires, Quest X-Series offers an unbeatable combination of performance and value.
A new armrest-equipped operator seat provides a smooth ride over bumpy lawns, while a deeper floor pan offers increased legroom for the operator. A standard deck step is included to ease mounting and dismounting the machine, while an integrated hitch and tools-free belt shields ease access for service and maintenance. However, with just two annual grease points and low-maintenance integrated hydro transmissions, servicing the Quest X-Series isn’t something you’ll need to do often.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
UltraCut Series 3 Cutting Deck
Our 5-inch deep UltraCut Series 3 cutting deck features fabricated and welded construction, with heavy-duty maintenance-free sealed bearing cutter housings. Our exclusive flow-control baffles deliver Exmark’s signature cut quality.
Integrated Hydro Transmission
The upgraded Hydro-Gear transmissions feature an integrated design, which reduces maintenance and increases reliability, while providing forward speeds of up to 8 mph.
Commercial-Grade Tires
Aggressive 22-inch drive tires provide superior traction and a smooth ride when combined with the large 13x6.5-inch caster tires.
Upgraded Operator Seat
The contoured operator seat features deep padding and standard armrests. When combined with the deeper floor pan, which provides more legroom, the Quest X-Series keeps you comfortable while mowing.
Engine Protection
The rear of the Quest X-Series model is protected by a steel guard which provides increased protection for vital engine components.
Specifications
| Equipment | |
| UPC | 193308225319 |
| Steering Control | Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment. |
| Caster Forks | .375" thick caster yoke arms. |
| Front Caster Tires | 13 x 6.5-5 smooth-tread, pneumatic. |
| Drive Tires | 22 x 11-10 K3012 |
| Parking Brake | Lever-actuated pawl brake. |
| Tractor Frame | Unibody, riveted 10-guage steel. |
| Blade Spindles | No maintenance, sealed and non-greasable spindles; 7.30"-diameter cutter housing contains 17mm (.67") diameter spindle shaft and hex blade drive. |
| Electrical | 12 volt battery with 15-amp alternator |
| Standard Features | Engine hour meter, cup holder and hitch |
| Seat | Commercial grade, high back contoured foam padded with arm rests. Hinged mounting and spring suspension. Adjustment is fore and aft for operator position. |
| Power Components | |
| Engine Brand | Kohler |
| Engine Model | KT735 |
| Engine Displacement | 735 |
| Engine Series | 7000 Series |
| Fuel System | Carbureted |
| Speed | Infinitely variable speed selection from 0-8.0 mph (12.9 kmph) forward, 0-5.0 mph (8.0 kmph) reverse. |
| Drive | Hydro-Drive |
| Engine Spec | 3099 |
| Engine Speed | 3,600 rpm |
| Air Filter | Standard Engine Manufacturer's air filter |
| Fuel Capacity | 3-gallon (11.0-L), single fuel tank with single fill locations |
| Drive Description | Dual Hydro Gear ZT2800, hydrostatic transmission with charge pumps, relief valves and independent, replaceable filters. |
| Fuel Type | Gas Carbureted |
| PTO Engagement | Electromagnetic 105-ft-lb clutch |
| Drive Wheel Release | Allows unit movement without engine running. |
| Fuel Indicator | Translucent Visual |
| Deck Lift | Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position. |
| Carb Compliant | No |
| Safety Package | Operator Presence Controls (OPC) and drive system interlock. |
| ROPS | Optional Rigid ROPS with seat belt and latch. |
| DECKS | |
| Deck Style | Floating Deck |
| Deck Style Description | Full-floating UltraCut Series 3. Side discharge standard, with molded discharge chute and option to bag or mulch. |
| Width / Cutting Deck | 48" |
| Deck Construction | 10-gauge high strength alloy top that is formed and continuously seam welded, with 7-gauge side skirt. |
| Blade Tip Speed | Approximately 18,500 fpm. |
| Cutting Heights | 1.5" (3.8 cm) to 4.5" (11.4 cm) in 0.50" (1.3 cm) increments, adjustable from operator's seat. |
| Blades | 3 Blades at 16.25" Length |
| Dimensions | |
| Width | 59.5 in. (151.0 cm) |
| Length | 76.0 in. (193.0 cm) |
| Height | 47.6 in. (121.0 cm) |
| Curb Weight | 680 |
