QZS724GKC54200
Overview:

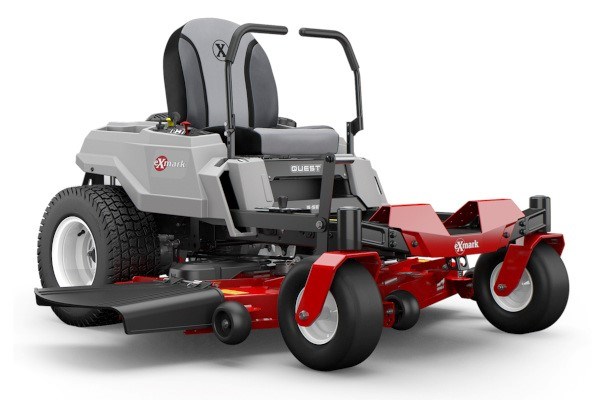

For homeowners looking to upgrade to Exmark's best residential zero-turn mower, the Quest S-Series delivers commercial-grade performance at an affordable price. With the ability to clear more than 3 acres of lawn per hour, S-Series residential zero-turn lawn mowers make quick work with forward ground speeds up to 7 mph. Factor in Exmark's signature zero-turn maneuverability, and the S-Series offers tremendous value with professional mowing results.
The S-Series residential lawn mower boasts a massive 54-inch welded steel mower deck and cutting width powered by a Kohler® or Exmark engine, which features a heavy-duty hydro gear system. Every Quest arrives standard with commercial-grade wheels for precise cutting and professional-grade traction to complement the 24 horsepower engine.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Simple, Easy Adjustments
With a single-point height adjust, it's easy to vary the Quest's cutting deck. Our 50- and 54-inch mowers are equipped with a foot lift-assist, which eases lifting and lowering the cutting deck. (Optional on 42-inch model)
Engine Protection
Standard, rear engine guard provides increased protection of critical engine components.
Fuel Tank Capacity
A single, 3.0-gallon tank with one fill location keeps you mowing longer with fewer fill-ups.
Commercial-Grade Tires
Standard on Quest mowers, the commercial-grade front caster tires and rear drive tires provide increased traction for superior handling.
Commercial Features
Exmark's Quest S-Series is a premium entry-level zero-turn mower. The proven commercial features have been adapted for consumer use including the tires and fabricated deck.
Professional Styling, Superior Comfort
The Quest S-Series mower has the commercial Exmark styling and provides a premium, ergonomic seat system that delivers a smooth, comfortable ride, even over uneven terrain.
Specifications
| EQUIPMENT | |
| UPC | 193308215648 |
| Width / Cutting Deck | 54" |
| Drive | Hydro-Drive |
| Starter | Electric |
| Steering Control | Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment. |
| Caster Forks | .375" thick caster yoke arms. |
| Front Caster Tires | 13 x 6.5-5 smooth-tread, pneumatic. |
| Drive Tires | 20 x 10.0-10 Turf Tech TL |
| Safety Package | Operator Presence Controls (OPC) and drive system interlock. |
| Parking Brake | Automatic-actuated pawl brake. |
| Tractor Frame | Unibody, riveted 10-guage steel. |
| Blade Spindles | No maintenance, sealed and non-greasable spindles; 5.50"-diameter cutter housing with 17mm (.67") diameter spindle shaft. |
| Electrical | 12 volt battery with 12-amp alternator |
| Standard Features | Engine hour meter, cup holder and hitch |
| Seat | Commercial grade, high back contoured foam padded w/o arm rests. Hinged mounting and spring suspension. Adjustment is fore and aft for operator position. |
| Optional Features | Seat armrests |
| POWER COMPONENTS | |
| Engine Brand | Kohler |
| Transmission Brand | Hydro-Gear |
| Transmission Speeds | Infinitely Variable |
| Engine Model | KT724 |
| Engine Displacement | 747 CC |
| Engine Series | 7000 Series |
| Fuel System | Carbureted |
| Speed | Infinitely variable speed selection from 0-7.0 mph forward, 0-5.0 mph reverse |
| Transmission | Hydrostatic |
| Engine Spec | 3014 |
| Engine Speed | 3,300 rpm |
| Air Filter | Standard Engine Manufacturer's air filter |
| Fuel Capacity | 3-gallon single fuel tank with single fill location |
| Drive Description | Two Hydro-Gear ZT-2200 hydro static transmissions with no hoses and integrated cooling fans and integrated reservoir |
| Fuel Type | Gas Carbureted |
| PTO Engagement | Electromagnetic 105-ft-lb clutch |
| Drive Wheel Release | Allows unit movement without engine running. |
| Fuel Indicator | Translucent Visual |
| Deck Lift | Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position. |
| Carb Compliant | No |
| ROPS | Optional Rigid ROPS with seat belt and latch. |
| DECKS | |
| Deck Style | Floating Deck |
| Deck Style Description | Series 2 fabricated and welded steel deck. Decks have side discharge standard with the option ot bag or mulch. |
| Deck Construction | 10-gauge top that is formed and welded, 12-gauge side skirt and 7-gauge welded bumper. 4 point suspension. |
| Cutting Heights | 1.5" to 4.5" in 0.5" increments |
| Blade Tip Speed | Approximately 18,500 fpm |
| Blades | 3 Blades at 18.75" Length |
| DIMENSIONS | |
| Width | 65.2" |
| Height | 46.6" |
| Curb Weight | 616 |
| Length | 76.0" |
