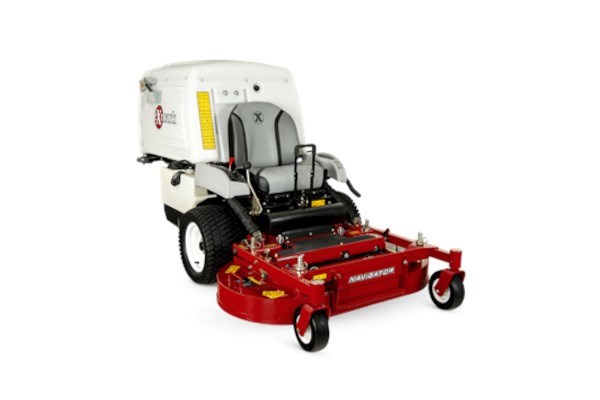

NVS730EKC48000
Overview:
N/A in California Thanks to the Navigator's patented fill-reduction and larger-diameter blower, you get the perfectly mowed lawn in less time. This zero turn mower is perfect for any pro who wants even more control and responsiveness.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Fill Reduction
The Navigator’s patented fill-reduction system lets you bag 100%, bag 33% and mulch 67% or mulch 100%. All with its versatile cutting deck and baffle system.
“FeatherTouch” Controls
As the name implies, you don’t have to muscle the Navigator around. Its FeatherTouch controls make maneuvering tight spots virtually effortless.
More Capacity, More Productivity
The optional powered dump attachment system means less time emptying and more time mowing. An exclusive baffle design fills, evenly back to front, for maximum efficiency on large lawns.
Heavy Duty Gear Box
Superior gear with spiral-bevel cut gears. Rated at 50hp for improved durability.
Easy to Maintain
Landscape professionals can spend more time mowing and less time maintaining their commercial mower.
Deck Depth
4 5/8 inch deep deck allows for improved productivity and durability.
Blower Size
Larger diameter blower helps improve hopper fill and reduce plugging.
Engine Orientation
Orientation of the engine draws air from the front of the machine over the belts, pumps and through the engine to the rear of the machine extending driveline component life. Fuel tank pivots out for easy servicing of the engine.
Specifications
| EQUIPMENT | |
| UPC | 193308000275 |
| Starter | Electric |
| Steering Control | FeatherTouch hand-control drive levers, low-force constant speed lever. |
| Front Caster Tires | 8 x 3.0-4 semi-pneumatic. |
| Drive Tires | 18 x 10.5-10 Multi-Trac® C/S. |
| Parking Brake | Wet disc, internal in wheel motor. |
| Tractor Frame | Channeled and fully welded 1.5" x 1.5" x 0.187" wall tubing with a ground clearance of 4.0", strategically located, continuous force counterweight springs. |
| Blade Spindles | Heavy Duty cast iron right-angle gearboxes. |
| Electrical | 12-volt battery with 20-amp alternator. |
| Seat | Commercial grade high back contoured foam padded with hinged mounting. |
| POWER COMPONENTS | |
| Transmission Brand | Hydro-Gear |
| Engine Brand | Kohler |
| Transmission Speeds | Infinitely Variable |
| Engine Model | CH730 |
| Engine Displacement | 725 |
| Transmission | Hydrostatic |
| Engine Series | Command™ EFI |
| Speed | Infinitely variable speed selection from 0-7.0 mph (11.3 kmph) forward, 0-4.5 mph (7.2 kmph) reverse. |
| Drive | Hydro-Drive |
| Engine Speed | 3,600 rpm |
| Engine Spec | 3064 |
| Air Filter | Heavy-duty canister air filtration |
| Fuel Capacity | 7.5-gallon (28.4-L), pivoting tank for easier engine service. |
| Drive Description | New Dual Hydro-Gear 12 cc variable displacement pumps power Hydro-Gear H Series motors. |
| PTO Engagement | Lever-actuated clutching belt with 6" brake band. |
| Fuel Type | Gas EFI |
| Drive Wheel Release | Allows movement without engine running. |
| Fuel Indicator | Translucent Visual |
| Deck Lift | Deck latch for easier height of cut adjustment |
| Carb Compliant | No |
| Safety Package | Operator Presence Controls (OPC) and drive system interlock. |
| ROPS | Optional 2-post foldable ROPS with seat belt and latch. |
| DECKS | |
| Deck Style | Floating Deck |
| Deck Style Description | Full floating center discharge cutting deck for dedicated bagging with patented Fill Reduction Baffles and heavy duty gear driven spindle assembly. |
| Width / Cutting Deck | 48" |
| Deck Construction | 7-gauge sides joined by a continuous bead weld to a 10-gauge top, 3/16" wear guard is welded to the entire base of the deck, 7-gauge deck spindle supports, 0.25"-thick strap steel deck supports. |
| Cutting Heights | 1.0" (2.54 cm) to 4.0" (10.2 cm) in 0.25" (0.64 cm) increments . |
| Blade Tip Speed | Approximately 18,500 fpm. |
| Bag Capacity | 9.5 bushel (76 gallons) |
| Blades | 2 Blades at 25" Length |
| DIMENSIONS | |
| Width | 49.2 in. (125.0 cm) |
| Height | 51.2 in. (130.0 cm) |
| Length | 94.5 in. (240.0 cm) |
| Curb Weight | 1191 |
