LZV060B2360A00
Overview:

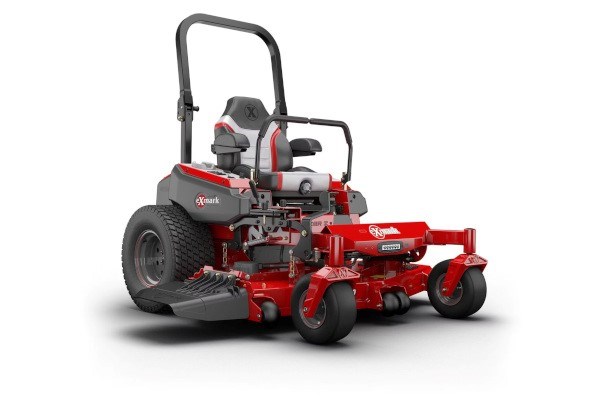

What do you get when you combine our industry-leading Lazer Z zero-turn mower with the state-of-the-art HyperCell power system? You get the new Lazer Z V-Series electric zero-turn mower. The Lazer Z V-Series gives landscape professionals a competitive edge when competing for contracts that include sound ordinances or zero engine exhaust mandates.
The Lazer Z V-Series provides the cut quality, productivity, and commercial durability you expect from Exmark, all in a quiet, fast, low maintenance electric zero-turn mower. The HyperCell power system delivers up to 7+ hours of runtime on each charge, so you can mow all day without charging. Our patent-pending management software delivers precise maneuverability with consistent, predictable control. Lazer Z V-Series also features Horizon360 Connect remote software, so you have full app-based connectivity to settings, location, and data from your Lazer Z V-Series mower.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Adapt Your Cut
Adjust deck rake quickly and easily without tools, from the operator seat, to optimize cut quality and performance in a variety of turf types and conditions. Adapt is particularly useful when mowing in wet, overgrown, or lush conditions, or stemmy grasses and weeds.
Hypercell
The HyperCell power system produces zero engine exhaust emissions and provides up to seven hours of runtime with each charge.
60-Inch Electric Series 6 Deck
Built from formed and fully welded high-strength 7-gauge alloy steel, the Electric Series 4 cutting deck eliminates belts, instead using three commercial high-torque electric blade motors.
Commercial High-Torque Drive System
Delivers instant torque, with no belts to transfer power. Offers the ability to vary blade tip and drive speed to match conditions or preserve battery power.
Specifications
| EQUIPMENT | |
| UPC | 193308225487 |
| Onboard Intelligence | Proprietary control system |
| Steering Control | Hydraulically dampened twin levers, adjust fore and aft. Adjustable to 2 height positions. |
| Caster Forks | Cast steel fork |
| Front Caster Tires | 13 x 6.5-6, smooth-tread, semi-pneumatic. |
| Drive Tires | 24x12-12, 4 ply Grass Master® |
| Parking Brake | Spring applied/electrically released dry parking brake. |
| Tractor Frame | Unibody, welded, heavy-duty 2" x 3" tubular steel. |
| Blade Spindles | No maintenance, electric deck motor; 7.75"-diameter motor housing with 25mm (.98) diameter spindle shaft. |
| Electrical | 60-volt 23.4kWh HyperCell battery system. |
| Standard Features | USB plug-in, hour meter, and cup holder |
| Seat | Deluxe, two-tone, bolstered suspension seat with Elastomeric Vibration Control material. Mounted on innovative Seat Isolation System that provides operator isolation in all three planes of motion as well as fore-aft slide and seat flip-up. |
| POWER COMPONENTS | |
| Engine Brand | N/A |
| Engine Model | N/A |
| Engine Displacement | N/A |
| Speed | Infinitely variable speed selection from 0-11.0 mph (18 kmph) forward, 0-6 mph (10 kmph) reverse. |
| Engine Series | N/A |
| Fuel System | N/A |
| Drive | Electric drive |
| Engine Speed | N/A |
| Engine Spec | N/A |
| Air Filter | N/A |
| Fuel Capacity | N/A |
| Drive Description | Two Exmark exclusive Dana planetary gearset electric motors. |
| PTO Engagement | N/A |
| Fuel Type | Battery |
| Drive Wheel Release | Allows unit movement without electric power. |
| Fuel Indicator | Battery charger level indicator |
| Deck Lift | Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position. |
| Carb Compliant | N/A |
| Safety Package | Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators. |
| ROPS | 2-post foldable ROPS standard with seat belt and latch. |
| DECKS | |
| Deck Style | Floating Deck |
| Deck Style Description | Full-floating UltraCut Electric Series 4. Side discharge standard, with molded discharge chute and option to bag or mulch. |
| Width / Cutting Deck | 60" |
| Deck Construction | 7-gauge high strength alloy top that is formed and seam welded, with 7-gauge high strength alloy side skirt. |
| Cutting Heights | 1.0" (2.5 cm) to 5.0" (12.7 cm) in 0.25" (0.64 cm) increments adjustable from operator's seat. |
| Blade Tip Speed | Approximately 17,500 fpm. |
| Blades | 3 Blades at 20.50" Length |
| DIMENSIONS | |
| Width | 75.4 in. (191.5 cm) |
| Height | 71.8 in. (182.4 cm) |
| Length | 82.3 in. (209.0 cm) |
| Curb Weight | 1414 |
