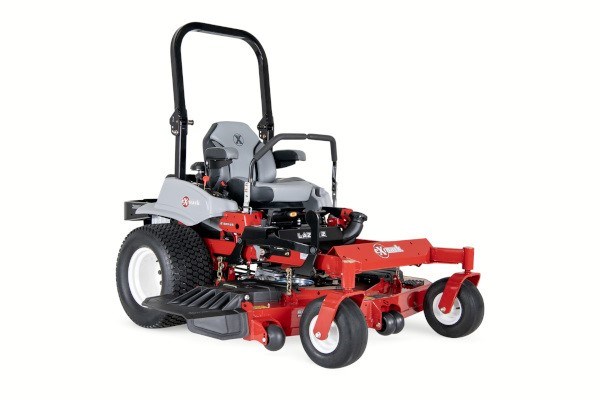

LRE730GKA48DA3
Overview:
As the most affordable model in the Lazer Z line, the all-new 2025 Lazer Z E-Series delivers an unbeatable combination of cut quality, productivity, durability and value. Select from 48-, 52-, or 60-inch UltraCut Series 4 cutting decks, all equipped with a newly redesigned discharge chute that distributes clippings over a wider area. A choice of twin-cylinder Kawasaki, Kohler, or Vanguard twin-cylinder commercial engines are available, all equipped with heavy-duty external air filters. Power is delivered through unitized Hydro Gear pump and motor units for up to 11 mph forward ground speeds. A new full-suspension operator seat increases operator comfort during long work days.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Unibody Frame
The Lazer Z E-Series utilize a one-piece unibody frame that delivers increased durability with fewer parts –– a classic case of “less is more”.
Less Time At The Pump
Lazer Z E-Series models feature a single 9.5-gallon fuel tank with a single fill location.
Ultracut Series 4 Deck
Built from formed and welded high-strength steel, UltraCut Series 4 full-floating decks feature maintenance free spindles with splined blade drivers to stop bolt tightening on impacts. The idler arm pivot bearings are also maintenance free.
Tool-less Belt Removal
The deck and hydro belts can be installed and removed without tools.
Reduced Maintenance
With just two annual grease points and maintenance-free sealed bearing spindles, the Lazer Z E-Series delivers maximum performance with minimum maintenance.
Specifications
| UPC | 193308242187 |
| Width / Cutting Deck | 48" |
| Drive | Hydro-Drive |
| Starter | Electric |
| Steering Control | Hydraulically dampened twin levers, adjustable both fore and aft with a 2-position height adjustment. |
| Caster Forks | .50" thick caster yoke arms. |
| Front Caster Tires | 13 x 6.5-6, smooth tread, pneumatic, with sealed ball bearings. |
| Drive Tires | 24 x 9.5-12, 4-ply Super Turf TL |
| Safety Package | Operator Presence Controls (OPC) and drive system interlock with safety interlock system indicators. |
| Parking Brake | Lever-actuated internal wet disc brake. |
| Tractor Frame | Unibody, welded, heavy-duty 1.5" x 3" tubular steel. |
| Blade Spindles | No-maintenance, sealed, and non-greasable spindles; 7.75"-diameter cutter housing with 25mm (0.98") diameter spindle shaft and splined blade driver. |
| Electrical | 12-volt battery with 15-amp alternator. |
| Standard Features | Engine hour meter and cup holder. |
| Seat | Suspension seat, foam flip-up armrests, integral safety switch with adjustment fore and aft from the operator's position. |
| Power Components | |
| Engine Brand | Kawasaki® |
| Transmission Speeds | Infinitely Variable |
| Engine Model | FX730V |
| Engine Displacement | 726cc |
| Engine Series | V-Twin |
| Fuel System | Carbureted |
| Speed | Infinitely variable speed selection from 0-11.0 mph forward, 0-6.0 mph reverse |
| Engine Spec | DTR5 |
| Engine Spec | FX730V-FS26-R |
| Engine Speed | 3,700 RPM |
| Air Filter | Heavy-duty canister air filtration system. |
| Fuel Capacity | 9.5-gallon single fuel tank with single fill location |
| Drive Description | Dual Hydro-Gear ZT-4400, hydrostatic transmissions with charge pumps, relief valves and independent, replaceable filters. |
| Fuel Type | Gas Carbureted |
| PTO Engagement | MagStop Electromagnetic 175 ft-lb clutch with spot brake. |
| Drive Wheel Release | Allows unit movement without engine running. |
| Fuel Indicator | Mechanical float |
| Deck Lift | Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position. |
| Carb Compliant | No |
| ROPS | 2-post foldable ROPS standard with seat belt and latch. |
| Decks | |
| Deck Style | Floating Deck |
| Deck Style Description | Full-floating UltraCut Series 4. Side discharge standard, with molded discharge chute and option to bag or mulch. |
| Deck Construction | A 10-gauge high-strength alloy top that is formed and continuously seam-welded, with a 7-gauge side skirt and a 7-gauge reinforcement plate welded to spindle mounting locations for improved strength. |
| Cutting Heights | 1.5" to 5.5" in 0.25" increments |
| Blade Tip Speed | Approximately 18,500 fpm. |
| Blades | 2 blades at 24.50" length |
| Dimensions | |
| Width | 61.2" |
| Height | 70.1" |
| Length | 87.8" |
| Curb Weight | 1017 |
