ZSX4640
Overview:

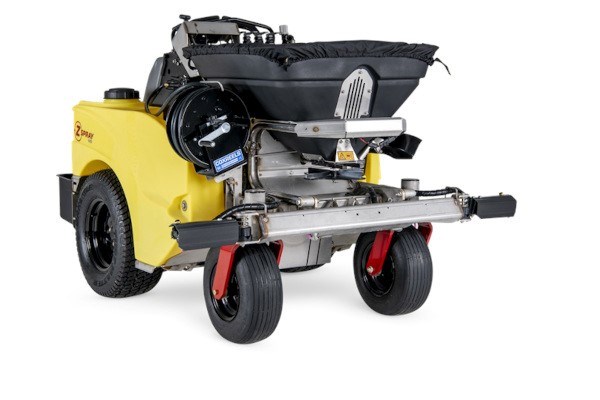

The all-new Z-Spray Mid 46-inch zero-turn stand-on spreader sprayer strikes the perfect middle ground of maneuverability and productivity for turf care professionals. At 46-inches, it’s narrow enough to fit into gated communities, but with a 250 lb. hopper and 40-gallon tank capacity, it can easily tackle larger urban and municipal jobs.
An isolated operator platform and contoured operator pad work with logical, easy to use controls to make Z-Spray Mid an easy machine to operate productively all day, all season. Choose from 2ft, 4ft, 6ft or 8ft spray patterns, and spread widths of up to 25-feet, with the ability to simultaneously apply granular and liquid materials simultaneously at up to 8 mph. A 75-foot hose reel provides extended access for spraying tight spaces.
The new low center of gravity design places the heaviest components low in the corrosion resistant stainless-steel frame. The new bi-directional spray boom pivots both forward and back when impacted, so the boom is much less likely to be damaged. The new tank design drains more completely, so less material is left over in the tank, and a tools-free tank drain eases draining the tank. When combined with our patented locking front caster wheels and wide, 24-inch drive tires, the Z-Spray Mid is stable, maneuverable, and easy to handle on almost any turf.
We offer a wide range of accessories to customize the Z-Spray Mid to your specific needs. Available accessories include a 2-gallon foam marker, 30-gallon auxiliary tank, vibratory hopper motor, LED light kit, 7-gallon ISO tank, 7-gallon auxiliary tank and more.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Stainless-Steel Chassis
Delivers maximum durability and corrosion resistance, with a stability enhancing low center of gravity design.
Simultaneous Application
Apply both liquid and granular materials simultaneously for maximum productivity.
75-Foot Hose Reel
Extended range to ease spraying in tight, hard to reach places away from the machine.
Bi-Directional Boom
Springs both forward and back, reducing the chances of the boom catching and being damaged.
Flip-Up Hopper
Enables easy access to the engine for service, or for cleaning the hopper.
Internal Wet Disc Parking Brake
Holds the machine reliably, even with a full load of materials.
Specifications
| Equipment | |
| Rear Tires | 24 X 9.5 - 12 |
| Front Tires | 16 X 6.5 -6 Ribbed |
| Frame | Stainless Steel |
| Gate Width | 48" |
| UPC | 193308225265 |
| Onboard Intelligence | n/a |
| Power Components | |
| Fuel System | Gas |
| Transmission | ZT5400 |
| Fuel Capacity | 5 Gal. |
| Drive System | |
| Ground Speed | 10 |
| Dimensions | |
| Width | 46" |
| Height | 50" |
| Length | 73" |
| Curb Weight | 896 lbs |
| Engine | |
| Displacement | 627 cc |
| Engine Brand | B&S |
| Engine Model | Vanguard |
| Engine Spec | 3857772314G1 |
| Spray System | |
| Tank Capacity | 40 Gal. |
| Pump | 5.3 GPM |
| Spray Rate | .25 GPM at 40 psi (14.9 GPA or .34 GAL/1000 SQ. FT. at 5 MPH) |
| Spray Width | 2', 6', 8', & 10' |
| Spray System | |
| Tank Capacity | 40 Gal. |
| Pump | 5.3 GPM |
| Spray Rate | .25 GPM at 40 psi (14.9 GPA or .34 GAL/1000 SQ. FT. at 5 MPH) |
| Spray Width | 2', 6', 8', & 10' |
| Spreader System | |
| Hopper Capacity | 250 lbs |
| Spread Width | 3' to 25' |
