ZSX5260
Overview:

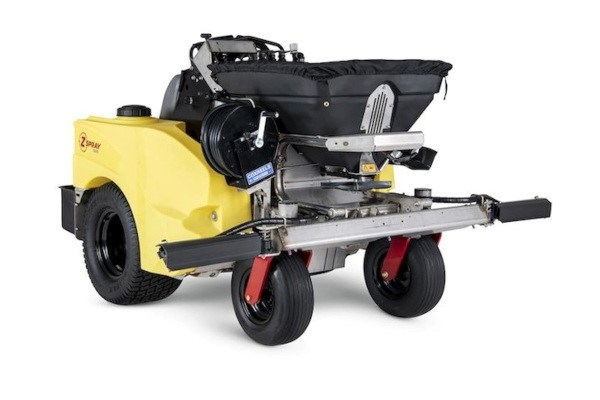

When you’re ready to take your application productivity to an entirely new level, the all-new Z-Spray Max is ready to deliver. With a massive 250-pound hopper and 60-gallon tank capacity (two 30-gallon tanks), Z-Spray Max gives you the ability to simultaneously apply liquid and granular materials with unmatched speed and efficiency. This makes it ideal for a wide range of jobs, from mid-size residences to the largest commercial and municipal accounts.
The new corrosion-resistant stainless-steel chassis is designed for a lower center of gravity to enhance stability and maneuverability in any conditions, regardless of the materials on-board. The new bi-directional spray boom pivots both forward and back when impacted, so the boom is much less likely to be damaged. The new tank design drains more completely, so less material is left over in the tank, and a tools-free tank drain eases draining the tank. The patented flip-open hopper eases hopper cleaning and makes for access to the engine for service.
Choose 2ft, 6ft, 8ft, or 10ft spray widths, and up to 25ft spread widths for precise application and maximum productivity on any property. A contoured operator pad and isolation mount-equipped operator platform provide all-day operator comfort, while logical, easy to reach controls make it an easy machine to get to know.
We offer a wide range of accessories for Z-Spray Max, including 7-gallon ISO and Auxiliary tanks, a 30-gallon auxiliary tank, 2-gallon foam marker, vibratory hopper motor, LED light kit and more.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Maximum Capacity
With its 250lb hopper and 60-gallon tank capacity, Z-Spray Max has the capacity required to finish the largest jobs without refilling.
75-Foot Hose Reel
Extended range to ease spraying in tight, hard to reach places away from the machine.
Locking Caster Wheels
Enables the operator to lock the caster wheels for increased stability on varied terrain.
Foot-Operated Switch
Starts and stops the pump and foam marker simultaneously (when installed), enabling precise application while freeing the operator’s hands.
Low-Maintenance Design
Only one annual grease point, so you can go all season without required maintenance.
Patented Magnetic Operator Pad
The contoured operator pad is secured with magnets, enabling easy removal for service, or accessing the spray chart.
Internal Wet Disc Parking Brake
Holds the machine reliably, even with a full load of materials.
Specifications
ZSX5260 - N/A in California
| Equipment | |
| Rear Tires | 24 x 12 - 12 |
| Front Tires | 16 X 6.5 -6 Ribbed |
| Frame | Stainless Steel |
| Gate Width | 54" |
| UPC | 193308225272 |
| Onboard Intelligence | n/a |
| Power Components | |
| Transmission | ZT5400 |
| Fuel System | Gas |
| Fuel Capacity | 5 Gal. |
| Ground Speed | 10 |
| Dimensions | |
| Width | 52" |
| Height | 50" |
| Length | 72" |
| Curb Weight | 912 lbs |
| Spreader System | |
| Hopper Capacity | 220 lbs. + two 50 lbs. fertilizer trays; hydraulic motor |
| Spread Width | Adjustable from 3 ft. up to 25 ft. |
| Spreader System | |
| Hopper Capacity | 250 lbs. |
| Spread Width | 3' to 25' |
| Engine | |
| Displacement | 627 cc |
| Engine Brand | B&S |
| Engine Model | Vanguard |
| Engine Spec | 3857772314G1 |
| Spray System | |
| Tank Capacity | 60 gal. |
| Pump | 5.3 GPM |
| Spray Rate | .25 GPM at 40 psi (14.9 GPA or .34 GAL/1000 SQ. FT. at 5 MPH) |
| Spray Width | 2 ft, 6 ft, 8ft, or 10 ft |
