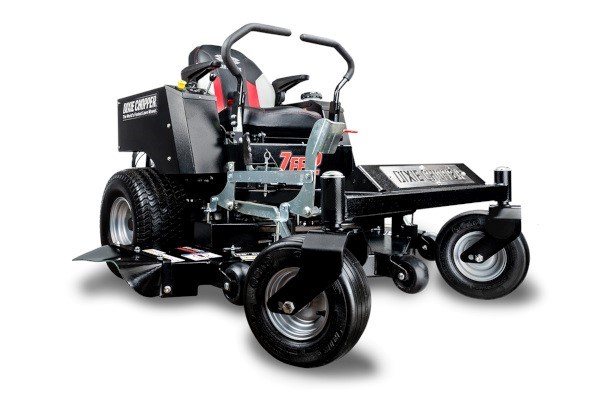

Dixie Chopper 2354KW

Double tap to zoom

STEEL FENDERS
Protects fuel tank from sun and impact damage.
COMMERCIAL FORKS
Greaseable and lifetime warranty against breakage.
HYDRO-GEAR® ZT-2800
Smooth Operation and fully serviceable.
42", 48", AND 54" ELITE CUTTING SYSTEM
Formed and welded 10 ga deck shell.
HIGH HORSEPOWER
A 23 horsepower engine from Kawasaki® to power you at up to 3.1 acres per hour.
QUICK-LIFT LOCK
Allows you to quickly raise the deck to avoid objects and locks the deck in travel height for transporting and storing.

Model	2354KW
Engine
Manufacturer	Kawasaki® FR
Horsepower	23
Displacement	726cc
Air-cleaner	2 stage
Cooling	Air-cooled
Starter	Electric
Drive System
Dual hydrostatic	Hydro-Gear® ZT-2800 transaxles (internal expansion tank)
Ground speed	7 mph
Parking brake	Integrated in transaxle
Towing capacity	100 lbs
Mower Deck
Deck size	54"
Acres/hour*	3.1
Cutting height	1.5" - 4.5"
Deck height adjustments	Manual lift, 1/2" increments
Deck Quick-Lift	Integrated
Deck engagement	Ogura® 87 ft-lbs
Construction	10 ga formed & welded
Blades	3 - 19.25" x 2.5"
Blade tip speed (approx- imate)	18,500 fpm
Spindles	.75" effective diameter machined shaft
Spindle housings	1pc keyless sealed cast aluminum
Anti-scalp rollers	4
Pulleys	Vented split 3/16" steel deep groove
General
Battery	12 Volt, 300cca
Digital display	hour meter
Fuel capacity	4 gallons
Rear tires	20 x 10-8 GrassMaster
Front tires	13 x 6.5-6
Frame	Welded 1" x 2", 2" x 2" tube, 10 ga formed
Fenders	Stainless steel
Floor-pan	Removable, steel
Seat	20" padded seat w/ armrests
Dimensions
Overall height	47"
Overall width (with chute)	64"
Overall length	76"
Weight	763 lbs
