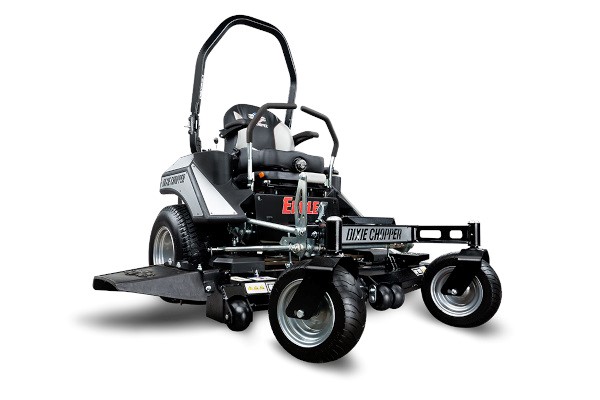

Dixie Chopper 2760KW

Double tap to zoom

OCDC
Foot-operated to keep your hands on the steering levers.
TURBINATOR® PRE-CLEANER
Exclusive feature removes debris for cleaner air through the engine.
PARKER HTG
Efficient Transmissions with 1,000 hour oil change intervals.
54" AND 60" DECKS
Deep 7 gauge shell to tackle deep grass with ease.
PROVEN POWER
Equipped with an industry preferred Kawasaki® FX engine for trusted and reliable performance.
ENHANCED COMFORT
Full suspension with a padded design and ISO mounted platform provides ultimate comfort.

MODEL	2760KW
ENGINE
Manufacturer	Kawasaki® FX
Horsepower	27
Displacement	852cc
Air-cleaner	4 stage & Turbinator® Pre-Cleaner
Cooling	Air cooled
Starter	Electric
DRIVE SYSTEM
Dual hydrostatic	Parker® HTG (14cc)
Ground speed	12 mph
Parking brake	Integrated in transaxle
Towing capacity	1000 lbs
MOWER DECK
Deck size	60"
Acres/hour	5.8
Cutting height	1" - 5"
OCDC (operator controlled discharge chute)	Foot-operated (standard)
Deck height adjustments	Manual lift, 1/4" increments
Electric lift	Optional
Deck engagement	Warner® 250 ft-lbs
Construction	7 ga formed & welded, Abrasion Resistance Baffles
Blades	(3) - 2.5" x 20.5"
Blade tip speed (approximate)	18,500 fpm
Spindles	1.25" effective diameter machined shaft
Spindle housings	Peer® Turf Xtreme™ ductile iron (sealed)
Anti-scalp rollers	4
Pulleys	Vented split 3/8" steel deep groove
GENERAL
Battery	12 Volt, 350cca
Digital display	Tachometer, hour meter, fuel gauge
Fuel capacity	8 gallons
Rear tires	25 x 12-12 GrassMaster
Front tires	15 x 6-8 (run-flat)
Frame	Welded C-channel, 7 ga formed
Floor-pan	Removable, steel
Seat	Full suspension, adjustable seat w/ armrest and isolated platform
Springer Forks	Optional
DIMENSIONS
Overall height (rollbar down)	52.7"
Overall height (rollbar up)	77.7"
Overall width (chute down)	76.9"
Overall width (chute up)	66.1"
Overall length (rollbar down)	88.5"
Overall length (rollbar up)	84.6"
Weight	1322 lbs

*Acres/hour at top speed and 80% efficient Specifications, while correct at the time of printing, may change without notice
