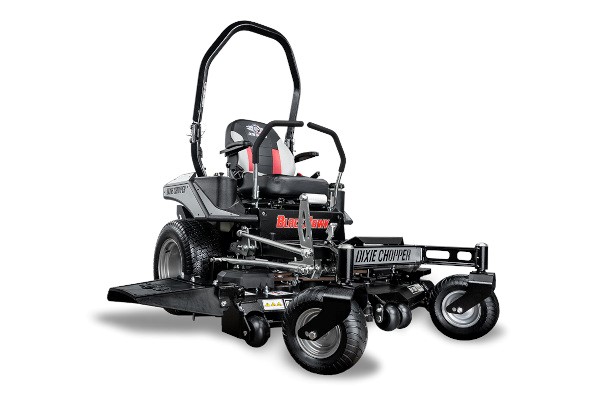

Dixie Chopper 2460KW

Double tap to zoom

OCDC
Foot-operated to keep your hands on the steering levers.
PARKER® HTE
Smooth steering and 1000 hour oil change intervals.
PEER® SPINDLES
Maintenance free with Contamination Exclusion Technology.
48", 54", AND 60" DECKS
Deep 7 gauge shell to tackle deep grass with ease
PROVEN POWER
Equipped with an industry preferred 24 horsepower Kawasaki® FS engine for trusted and reliable performance.
TOTAL COMFORT
The high-back, padded, and over-sized boulstered seat hugs your torso for ultimate comfort.

MODEL	2460KW
ENGINE
Manufacturer	Kawasaki® FS
Horsepower	24
Displacement	726cc
Air-cleaner	2 stage
Cooling	Air cooled
Starter	Electric
DRIVE SYSTEM
Dual hydrostatic	Parker® HTE
Ground speed	9 mph
Parking brake	Integrated in transaxle
Towing capacity	200 lbs
MOWER DECK
Deck size	60"
Acres/hour*	4.3
Cutting height	1" - 5"
OCDC (operator controlled discharge chute)	Foot-operated (standard)
Deck height adjustments	Manual lift, 1/4" increments
Electric lift	Optional
Deck engagement	Ogura® 150 ft-lbs
Construction	7 ga formed & welded
Blades	(3) - 2.5" x 20.5"
Blade tip speed (approximate)	18,500 fpm
Spindles	1.25" effective diameter machined shaft
Spindle housings	Peer® Turf Xtreme™ ductile iron (sealed)
Anti-scalp rollers	4
Pulleys	Vented split 3/8"steel deep groove
GENERAL
Battery	12 Volt, 350cca
Digital display	Tachometer, hour meter, fuel gauge
Fuel capacity	7 gallons
Rear tires	23 x 10.5-12 GrassMaster
Front tires	13 x 6.5-6
Frame	Welded C-channel, 7 ga formed
Floor-pan	Removable, steel
Seat	24" high-back adjustable padded seat w/ armrest
Springer Forks	Optional accessory
DIMENSIONS
Overall height (rollbar down)	50"
Overall height (rollbar up)	71"
Overall width (chute down)	76"
Overall width (chute up)	61.9"
Overall length (rollbar down)	85.8"
Overall length (rollbar up)	81.3"
Weight	1121 lbs

*Acres per hour is calculated on 80% operator accuracy and mowing conditions with an optimum cutting height of 2.5 to 4.5 inches.
