3566KW
Overview:

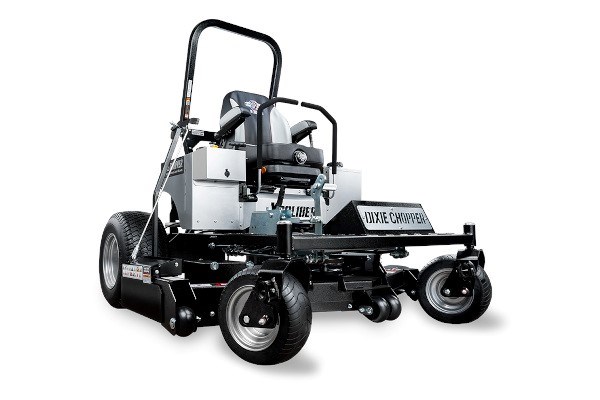

THE TOUGHEST MOWER IN THE INDUSTRY
Professional commercial contractors and large property land owners across the U.S. have come to depend on the XCaliber for its legendary performance.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- TOTAL COMFORT
High-back suspension seat with recline, lumbar, and padded armrests. - TURBINATOR® PRE-CLEANER
Exclusive feature removes debris for cleaner air through the engine. - PUMPS & WHEEL MOTORS
Stronger transmissions for extended system life. - HEAVY-DUTY SPINDLES & COOLING FANS
Fans help keep spindles and belts cool while cleaning the top side of the deck. - X2 "WIND TUNNEL" DECK
Increases airflow and reduces build-up inside the deck. *optional Twist blade shown - PURE POWER
Equipped with an industry preferred 35 horsepower Kawasaki® FX engine or a 40 horsepower Vanguard Big Block EFI for greater fuel efficiency.
Specifications
| Model | 3566KW |
| Engine | |
| Manufacturer | Kawasaki® FX |
| Horsepower | 35 |
| Displacement | 999 |
| Air-cleaner | 4 stage & Turbinator® Pre-Cleaner |
| Cooling | Air-cooled |
| Starter | Electric |
| Drive System | |
| Pumps | Hydro-Gear® 21cc |
| Wheel motors | Parker® DG335 |
| Ground speed | 13 mph |
| Parking brake | Automotive Style |
| Towing capacity | 2,000 lbs |
| Mower Deck | |
| Deck size | 66" |
| Acres/hour* | 6.9 |
| Cutting height | 1.25" - 5" |
| OCDC (operator controlled discharge chute) | Standard |
| Deck height adjustments | Manual lift, 1/4" increments |
| Electric lift | Optional |
| Deck engagement | Ogura® 250 ft-lbs |
| Construction | 7 ga formed & welded |
| Top plate | 7 ga bolted (not welded) |
| Blades | 3 - 23.3" x 2.5" |
| Blade tip speed (approximate) | 18,000 fpm |
| Spindle housings | Peer® Turf Xtreme™ ductile iron (sealed) |
| Spindles | 1.25" effective diameter machined shaft |
| Anti-scalp rollers | 6 |
| Spindle cooling fans | Standard (3) |
| Pulleys | Vented split 3/16" steel deep groove |
| General | |
| Battery | 12 Volt, 350cca |
| Digital display | Tachometer, hour meter, voltmeter, service alerts |
| Fuel capacity | 12 gallons |
| Rear tires | 25 x 12-12 GrassMaster |
| Front tires | 15 x 6-8 15 x 6-8 (run-flat) |
| Frame | Welded 1" x 2" tube, 7 ga formed |
| Fenders | Stainless steel |
| Floor-pan | Removable, steel |
| Seat | High-back, full suspension, lumbar, recline, and padded armrests |
| Springer Forks | Standard |
| Dimensions | |
| Overall height | 52" |
| Overall height (rollbar up) | 77.5" |
| Overall width | 72" |
| Overall length | 85" |
| Overall length (rollbar down) | 88.5" |
| Weight | 1445 lbs |
*Acres/hour at top speed and 80% efficient Specifications, while correct at the time of printing, may change without notice.
