General Purpose: J41
Overview:

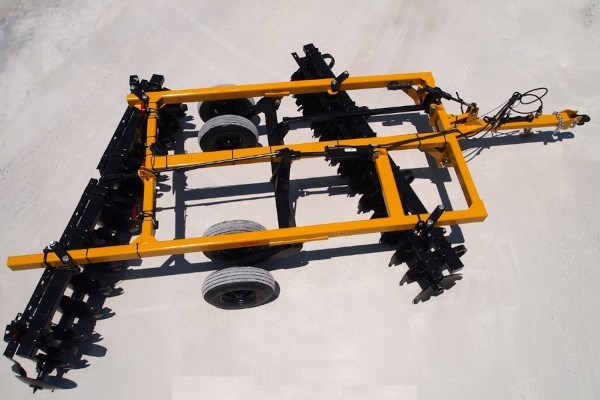

AMCO offers Wheel Offset Harrows with 10½” blade spacing in four options. Primary tillage models are available in both 50″ main frames or 86″ main frames (designated with a “B”).
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- Standard equipment: 24″ x ¼” cutout blades with backup disc behind the front right blade, providing extra surface area to support the cutting blade; an adjustable tongue with jack; adjustable gang angle (17º to 23º) on both front and rear gangs; 15″ x 6″ wheels with 6-bolt wheel hubs; 4″ x 8″ hydraulic cylinder (3,000 PSI) with hoses to tractor; heavy-duty scrapers with replaceable high-carbon blades to free blades of soil buildup
- Optional upgrade for rocky and woody conditions: Spring-loaded shock absorber gang with 24″ x ¼” cutout blades
- Safety features: Safety chains, slow-moving placard, and light kits
- Optional equipment: Feathering blades with scraper for the rear gang
- Disc gangs feature maintenance-free bearings with three-year warranty; bearings eliminate possibility of contamination and need for re-lubrication
- Features a highly durable powder-coated finish
Specifications
| Model | J41-1624 | J41-1824 | J41-2024 | J41-2224 | J41-2424 |
| Cutting Width* | 7'0″ | 7'10" | 8'8″ | 9'6″ | 10'4″ |
| No. of Disc Blades | 16 | 18 | 20 | 22 | 24 |
| No. of Bearings | 6 | 6 | 6 | 8 | 8 |
| Approx. Engine HP Required | 68-88 | 74-95 | 81-101 | 88-108 | 95-115 |
| Approx. Weight lbs.** | 2,592 | 2,739 | 2,905 | 3,154 | 3,345 |
*To calculate weight/blade, divide the approximate weight of the model by the number of disc blades.
Specifications for all models subject to change without notice.
