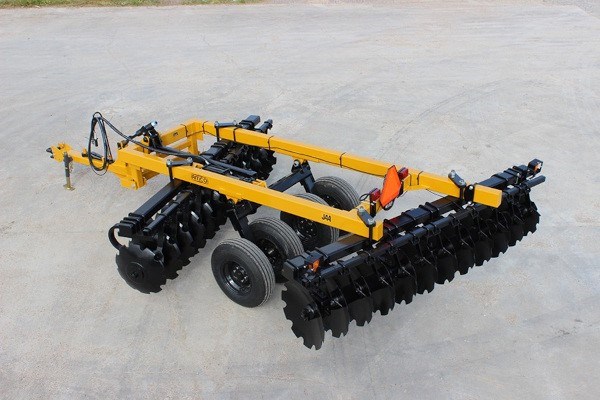

Extra-Heavy-Duty Primary Tillage: J43, J44, J43B, J44B
Overview:
AMCO offers Wheel Offset Harrows with 10½” blade spacing in four options. Primary tillage models are available in both 50″ main frames or 86″ main frames (designated with a “B”).
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- Disc gangs feature greaseable 2¾” bearings with sleeve reinforcement
- Features 1½” square, high-carbon, cold-rolled steel axles
- Standard unit comes with 24″ diameter x ¼″ thick plain blades with diminishing leveling blades
- Optional blade diameters and thicknesses are available
- Equipped with ³⁄₁₆” x 6½” x 8” high-carbon steel, replaceable, adjustable scraper blades mounted on bars of 2½” x 2½” square tubing; the scrapers are attached to the 2½” x ½” thick arms with heavy-duty U-bolts
- Shock Absorber Bearing Riser prevents damage from rocks and stumps and is standard on J43, J43B, J44, and J44B models
- Dual wheels improve flotation
- Positive screw-type depth control maintains set cutting depth
- Wear and zerk guards protect bearing housings and grease fittings
- Includes an adjustable 88½” tongue with base hitch and tongue jack
- Heavy-duty 3,000 PSI hydraulic cylinders adjust cutting depth and raise the disc for transport
- Features outriggers of 17’0″ and 18’8″
- Backup blades provide added support for working blades
- Safety features include safety chains, slow-moving placard, and light kits
- J43: Weights of 205 to 231 pounds per blade
- J44: Weights of 210 to 327 pounds per blade
Specifications
50″ Main Frame
| Model | J43-2024 | J43-2424 | J43-2824 |
| Cutting Width* | 8'8″ | 10'4″ | 12'0″ |
| No. of Disc Blades | 20 | 24 | 28 |
| No. of Bearings | 6 | 8 | 10 |
| Approx. Engine HP Required | 115-135 | 122-162 | 5,036 |
| Approx. Weight lbs.** | 4,303 | 5,036 | 5,617 |
86″ Main Frame
| Model | J43B-2824 | J43B-3224 | J43B-3624 | J43B-4024** | J43B-4424** |
| Cutting Width* | 12'0″ | 13'8″ | 15'4″ | 17'0″ | 18'8″ |
| No. of Disc Blades | 28 | 32 | 36 | 40 | 44 |
| No. of Bearings | 10 | 12 | 12 | 12 | 16 |
| Approx. Engine HP Required | 162-203 | 176-230 | 189-243 | 216-270 | 243-304 |
| Approx. Weight lbs.** | 6,616 | 8,074 | 8,533 | 9,283 |
Model J44
50″ Main Frame
| Model | J44-2024 | J44-2424 |
| Cutting Width* | 8'8″ | 10'4″ |
| No. of Disc Blades | 20 | 24 |
| No. of Bearings | 6 | 8 |
| Approx. Engine HP Required | 128-162 | 149-176 |
| Approx. Weight lbs.** | 4,464 | 5,222 |
86″ Main Frame
| Model | J44B-2824 | J44B-3224 | J44B-3624 | J44B-4024** | J44B-4424** | J42B-4824** |
| Cutting Width* | 12'0″ | 13'8″ | 15'4″ | 17'0″ | 18'8″ | 20'6″ |
| No. of Disc Blades | 28 | 32 | 36 | 40 | 44 | 48 |
| No. of Bearings | 10 | 12 | 12 | 12 | 16 | 16 |
| Approx. Engine HP Required | 149-189 | 169-203 | 189-236 | 216-257 | 236-277 | 257-297 |
| Approx. Weight lbs.** | 6,063 | 6,558 | 6,910 | 7,803 | 8,389 | 8,741 |
*To calculate weight/blade, divide the approximate weight of the model by the number of disc blades.
**Equipped with auxiliary frames, clamps, and 8-hole hubs with 15″ x 10″ 8-hole wheels.
Specifications subject to change without notice.
