Features

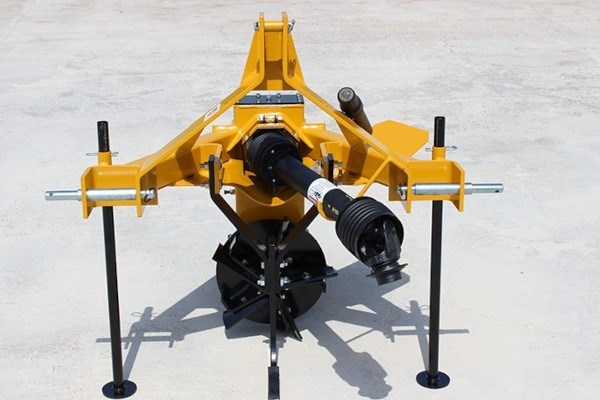

High-performing in dry conditions and still a solid choice for creating ditches in wet conditions, the AMCO Vertical Rotary Ditcher weighs 120 pounds less than the offset model and will dig a deeper ditch than the offset. The cutter head is a traditional center placement. It straddles the ditch during cleanout.
- Driving the cutter head is a dual, heavy-duty, endless double #80 roller chain with 1″ pitch that runs continuously in a sealed oil bath
- Each chain drive is equipped with an adjustable idler sprocket with case-hardened teeth
- An all-welded main frame has chain-case construction of 6″ x 10″ x ¼″ tubing
- The 3-point hitch A-frame fits category II and III with quick-hitch compatibility
- Our standard parking stands allow you to park your drainage ditcher in the upright position for easy connect and disconnect
- AMCO’s standard buster shank rips through tough dirt, allowing penetration to the desired depth and clean passage for the cutter head
Specifications
Vertical Rotary Ditcher Options
| Model | AD-540-V | AD-1000-V |
| Description (Body Only) | Vertical Rotary Ditcher for 540 PTO | Vertical Rotary Ditcher for 1,000 PTO |
| Approx. Weight lbs. | 569 | 569 |
Cutter Head Size
| Model | AD-CHA18 | AD-CHA26 |
| Blade Diameter | 18″ to 20″ 5-blade | 24″ to 26″ 5-blade |
| Approx. Weight lbs. | 72 | 109 |
PTO Driveline
| Model | AD-DL6S | AD-DL21S | AD-DL20S |
| PTO Driveline | 1 3/8″, 6-spline (for 540 PTO) | 1 3/8″, 21-spline (for 1,000 PTO) | 1 3/4″, 20-spline (for 1,000 PTO) |
| Approx. Weight lbs. | 56 | 56 | 58 |
Specifications subject to change without notice.
