Features

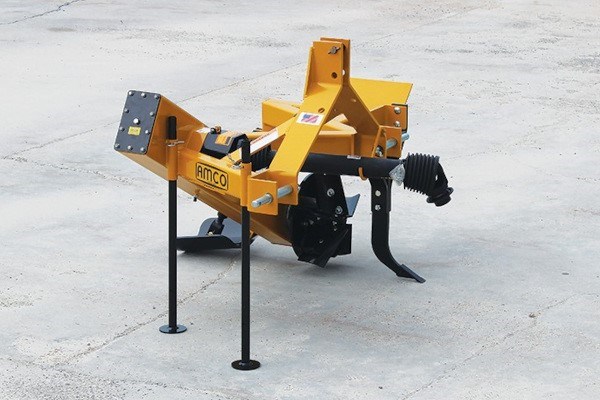

The AMCO Offset Rotary Ditcher offers outstanding performance in wet conditions and gives farmers the ability to dig drainage ditches for improved water drainage in any crop or soil type. The offset is designed so the cutter head sits behind the left tractor tire, leaving only the right tire track alongside the ditch. To clean out ditches, drop one tire into the ditch. The offset is also better for cleaning out ditches than conventional drainage ditchers; no need to straddle the ditch, just drop a tire in it and go.
- Robust frame
- Easy functionality
- Heavy-duty, endless double #80 roller chain that runs continuously in a sealed oil bath
- Concave skid shoe; the skid shoe mount is located behind the ditcher gear case to keep debris and mud from building up around the cutter head
- Standard buster shank
- Available in 540 and 1,000 PTO
Specifications
Offset Rotary Ditcher Options
| Model | AD-540-OS | AD-1000-OS |
| Description | Left Offset Rotary Ditcher for 540 PTO | Left Offset Rotary Ditcher for 1,000 PTO |
| Approx. Weight lbs. | 734 | 734 |
Cutter Head Size
| Model | AD-CHA18 | AD-CHA26 |
| Blade Diameter | 18″ to 20″ 5-blade | 24″ to 26″ 5-blade |
| Approx. Weight lbs. | 72 | 109 |
PTO Driveline
| Model | AD-DL6S | AD-DL21S | AD-DL20S |
| PTO Driveline | 1 3/8″, 6-spline (for 540 PTO) | 1 3/8″, 21-spline (for 1,000 PTO) | 1 3/4″, 20-spline (for 1,000 PTO) |
| Approx. Weight lbs. | 56 | 56 | 58 |
Specifications subject to change without notice.
