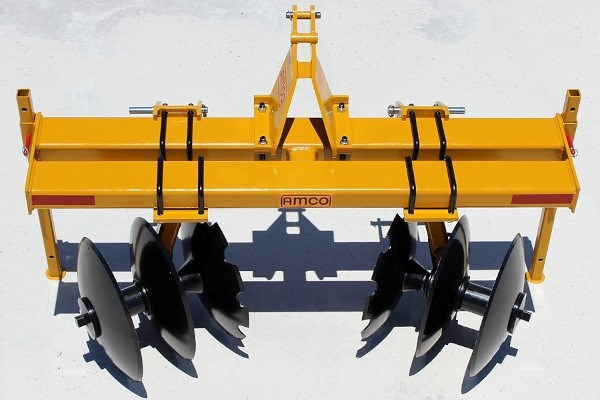

Pivot / Tile Plow
Overview:
AMCO’s Pivot/Tile Plow (PTP) is ideal for fixing pivot ruts and soil ridges left after tile installation. If soil leveling is your goal, our Pivot / Tile Plow is the tool for the job.
The PTP blade setup consists of one 24″ x ¼” (6mm) cutout blade on the inside and two 24″ x ¼” blades on the outside. Blade spacing is 9″.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Other PTP features:
- Features 1½” square, high-carbon, cold-rolled steel axles
- Features Protect-O- Shield® Bearings: greaseable, 1½” square-bore, ball-type, toggle-mounted with zerk and wear guards
- Transport width: 7′
- 3-point hitch fits category I, II, and III hitches (quick-hitch compatible)
- Features angled standard cast gang risers
- Main frame tubing: 4″ x 7″ x ⅜” x 80″ rectangular
Specifications
| Model | PTP-624 |
| Cutting Width | 5 ½' |
| No. of Discs | 6 |
| No. of Bearings | 4 |
| Approx. Engine HP Required | 50 and up |
| Approx. Weight lbs.* | 700 |
*To calculate weight/blade, divide the approximate weight of the model by the number of disc blades.
Specifications subject to change without notice.
