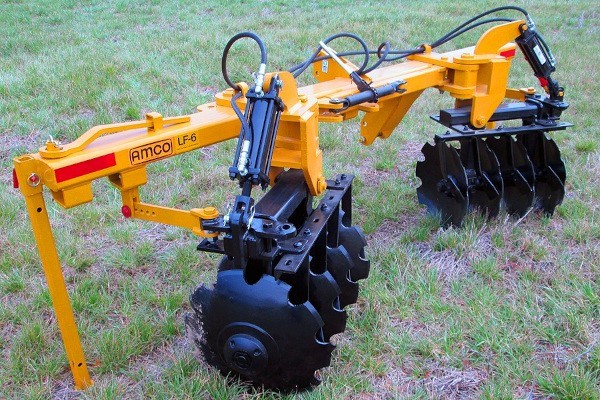

LF6, MLF6, LJ6, MLJ6
Overview:
Both our Manual and Hydraulic Levee Plows are designed with reversible gangs so they can tear down as well as build up levees. Cutting weights vary from 216 to 254 pounds per blade, depending on the model.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- AMCO-exclusive Follow-the-Levee feature allows gangs to shift independently from the tractor to follow sharply curving levee lines
- Disc gangs feature maintenance-free bearings with three-year warranty; bearings eliminate possibility of contamination and need for re-lubrication
- Designed with a main frame 7″ x 4″ x ⅜″ toolbar and 1½″ square, high-carbon, cold-rolled steel axles
- Gang angles are easily adjustable with pins from 18° to 28°
- Hitch designed to accommodate category II and III hitches for quick couplers and conventional 3-point hitches
- Equipped with high-carbon, replaceable, and adjustable blades with ⅜″ x 2″ heat-treated spring steel shanks, mounted to 3″ x 2″ x ⅜″ high-carbon angle iron bars
- Features adjustable, telescoping frames to accommodate narrow or wide-based levees
- Comes with standard 24″ x ¼″ blades with a 10″ backup blade on the end blade of each gang
- Optional equipment: Manual control ratchet jacks, 24″ x ¼″ cutout blades, 26″ x ¼″ cutout blades, 26″ x ¼″ plain blades, feathering blade set (2) with backup blade
Specifications
Hydraulic
| Model | LF6-824 | LF6-1024 | LF6-1224 | LJ6-824 | LJ6-1024 | LJ6-1224 |
| Adjustable Cutting Width | 8'11" to 9'11" | 10'5″ to 11'5″ | 11'11" to 12'11" | 9'5″ to 10'5″ | 11'1″ to 12'1″ | 12'9″ to 13'9″ |
| No. of Disc Blades | 8 | 10 | 12 | 8 | 10 | 12 |
| Blade Spacing | 9″ | 9″ | 9″ | 10½" | 10½" | 10½" |
| Approx. Engine HP Required | 108-169 | 122-203 | 135-236 | 115-189 | 135-216 | 155-243 |
| Approx. Weight lbs.* | 2,060 | 2,260 | 2,460 | 2,160 | 2,360 | 2,560 |
Manual
| Model | MLF6-824 | MLF6-1024 | MLF6-1224 | MLJ6-824 | MLJ6-1024 | MLJ6-1224 |
| Adjustable Cutting Width | 8'11" to 9'11" | 10'5″ to 11'5″ | 11'11" to 12'11" | 9'5″ to 10'5″ | 11'1″ to 12'1″ | 12'9″ to 13'9″ |
| No. of Disc Blades | 8 | 10 | 12 | 8 | 10 | 12 |
| Blade Spacing | 9″ | 9″ | 9″ | 10½" | 10½" | 10½" |
| Approx. Engine HP Required | 108-169 | 122-203 | 135-236 | 115-189 | 135-216 | 155-243 |
| Approx. Weight lbs.* | 2,060 | 2,260 | 2,460 | 2,160 | 2,360 | 2,560 |
*To calculate weight/blade, divide the approximate weight of the model by the number of disc blades.
Specifications subject to change without notice.
