Standard (Non-Folding) Disc Harrows—F17
Overview:

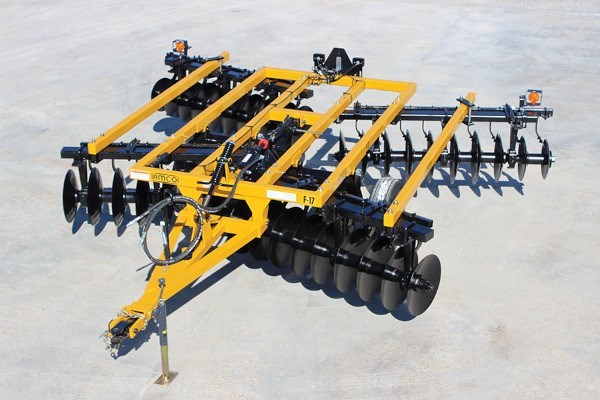

Double Offset Tandem Disc Harrow: F17
For dependable seedbed preparation, you can rely on AMCO’s F17 Double Offset Tandem Disc Harrow, our non-folding option for breaking and smoothing the soil.
Weighing between 296 and 337 pounds per cutting foot, the F17 Disc Harrow is available in 9‘3″, 10‘6″, 12‘0″, 13‘6″, 15‘0″, and 16‘6″ models for use with tractors ranging from 68 to 176 engine HP.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- Disc gangs feature maintenance-free bearings with three-year warranty; bearings eliminate possibility of contamination and need for re-lubrication
- Wear guards protect bearing housing
- Features 1½” square, high-carbon, cold-rolled steel axles
- Includes 70″ long pull tongue with tongue jack and reversible clevis
- Features adjustable gang angle
- Equipped with ³⁄₁₆” x 6½” x 8″ high-carbon steel, replaceable, adjustable scraper blades mounted on bars of 2½” x 2½” square tubing; the scrapers are attached to the 2½” x ½” thick arms with heavy-duty U-bolts
- Features standard 22″ x ¼” plain blades on 9″ spacing
- Diminishing blades on the rear gang provide a smooth, even cut
- Comes standard with gang bolt wrench, light kit, and 4″ x 8″ (3,000 PSI) hydraulic cylinder with stroke control and hose bundle to tractor
- Safety features: Safety chains, slow-moving placard, and light kits
- Optional equipment: Dual wheels in place of single wheels, cutout blades in place of the standard plain blade (more blade configurations are available)
Dealing with unexpected or unpredictable terrain? Try the optional Shock Absorber Bearing Riser, which allows the gang on the harrow to move upward and back to relieve shock when the disc blades encounter an obstacle in the ground.
Specifications
| Model | F17-2622 | F17-3022 | F17-3422 | F17-3822** | F17-4222** | F17-4622** |
| Cutting Width | 9'3″ | 10'6″ | 12'0″ | 13'6″ | 15'0″ | 16'6″ |
| No. of Disc Blades | 26 | 30 | 34 | 38 | 42 | 46 |
| No. of Bearings | 8 | 8 | 8 | 12 | 12 | 12 |
| Approx. Engine HP Required | 68-101 | 81-108 | 95-122 | 108-135 | 122-155 | 142-176 |
| Approx. Weight lbs.* | 3,414 | 3,698 | 3,982 | 4,816 | 5,130 | 5,644 |
*To calculate weight per blade on each unit, divide the approximate weight by the number of blades.
**Includes 2 outrigger bars, clamps, and dual 9.5L tires on 15″ x 8″ wheels.
Specifications subject to change without notice.
