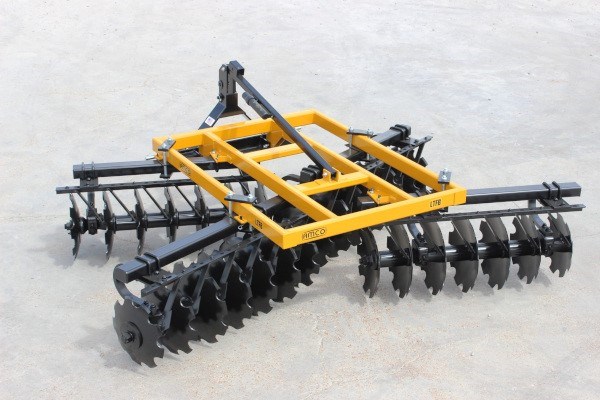

LTF Lift Double Offset Harrows
Overview:
Built AMCO tough, the rugged, hardworking LTF Lift Double Offset Harrow makes tillage and seedbed preparation go smoothly. It is perfect for building and maintaining food plots, logging roads, gardens, turn rows, and firebreaks. AMCO’s LTF series is available in six sizes, so you are guaranteed to find the perfect fit for your operation.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- Disc gangs feature maintenance-free bearings with three-year warranty; bearings eliminate possibility of contamination and need for re-lubrication
- Shock Absorber Bearing Risers absorb shock when disc blades encounter obstacles, flexing to lift blades that have met an obstruction while keeping the other gangs in contact with the soil
- Equipped with 18″ x ¼” cutout blades on small-frame harrows and 22″ x ¼” cutout blades on large-frame harrows
- Drilled and threaded bumper washers for easy installation of optional feathering blades
- Gang angles adjust from 14° to 18° to adapt to any soil conditions
- Small-frame models fit category I hitches; large-frame models fit category II or III quick hitches
- Features 1½” square, high-carbon, cold-rolled steel axles
- Standard heavy-duty scrapers with replaceable high-carbon blades free blades of soil buildup
- Optional feathering blades catch soil thrown by blades on the front gang before it falls in adjacent rows, resulting in a smooth finish and allowing faster operation
- Features a rugged, tubular, welded, steel-reinforced frame with a durable powder-coated finish
- Two auxiliary bars provide additional support for the gang frames
Specifications
Small Frame
| Model | LTF100-1618 | LTF100-2018 |
| Cutting Width | 6'0″ | 7'3″ |
| No. of Disc Blades | 16 | 20 |
| Approx. Engine HP Required* | 32-47 | 41-52 |
| Approx. Weight lbs.** | 1,600 | 1,750 |
Large Frame
| Model | LTF100B-2022 | LTF100B-2422 | LTF100B-2822 | LTF100B-3222 |
| Cutting Width | 7'3″ | 8'7″ | 10'2″ | 12'0″ |
| No. of Disc Blades | 20 | 24 | 28 | 32 |
| Approx. Engine HP Required* | 60 | 80 | 100 | 110 |
| Approx. Weight lbs.** | 2,450 | 2,700 | 2,900 | 3,131 |
*Four-wheel drive recommended.
**To calculate weight per blade on each unit, divide the approximate weight by the number of blades.
Specifications subject to change without notice.
