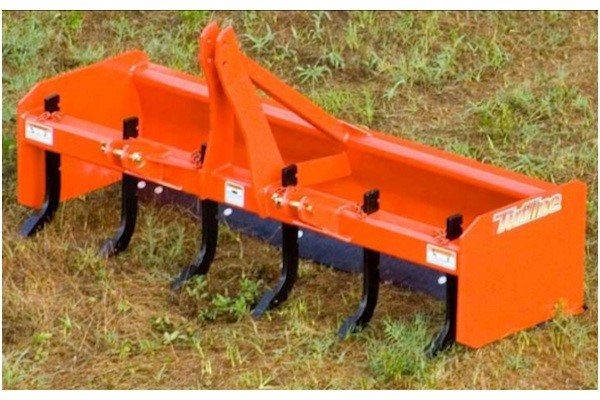

Lift & Pull Type Box Scrapers
TB1 Series Box Scrapers
Overview:
The TB1 and TB2 Series Box Scrapers are designed for years of producing professional results with every application. All units are equipped with adjustable high strength alloy steel scarifier shanks and 2 heat treated 1080 grade reversible cutting edges. Each unit has radius formed moldboards for efficient loading and unloading of dirt and high strength adjustable scarifier shanks with a high clearance scarifier bar for less trash build-up.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
TB1 Series Box Scrapers
- Medium weight scrapers
- Designed for 25 to 50 horsepower tractors
- 3/8” X 17” X 24” end plates
- Dual 3/8” x 6” Reversible Cutting Edge
- Category 1
- Quick hitch compatible
- Adjustable Scarifier Shanks
Specifications
| MODEL | TB1 SERIES |
| 3-Point Hitch | Category I Quick Hitch (iMatch Compatible) |
| Working Width | 5', 5'6", 6', 7' |
| Tractor HP (MAX) | 25 - 50 HP |
| Approx. Operating Weight | 416 - 669 lbs |
| Beam Type | Tubular Scarifier Beam |
| Scarifier Shanks | Notched Four Position |
| Points | Heat Treated Points |
| Capacity | 11.33 - 19.80 cu. ft |
| Cutting Edge | (2) 1/2" x 6' Reversible |
| End Plate Thickness | 3/8" |
| Assembly Time | 15 min. |
| Moldboard Thickness | 1/4" |
