Lift & Pull Type Box Scrapers

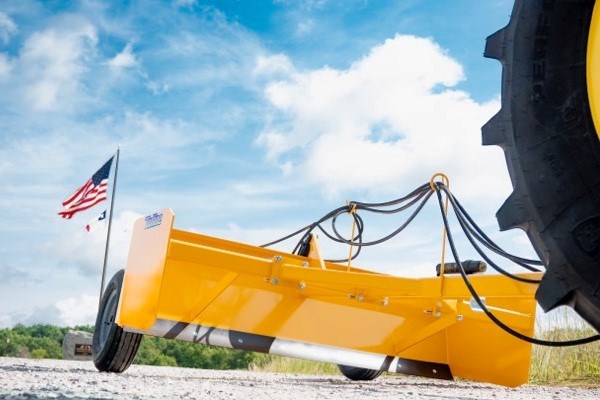

DS1 Series Wheeled Box Scrapers
Overview:
This versatile hydraulic drag scraper makes maintenance of roads and driveways an easy task. Designed for 35 – 120 horsepower tractors, the hydraulic control allows for smooth land leveling for any project from farms and ranches to construction and general contracting. A hydraulic tilt option is available when road crowning and finer grading applications are required.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- Hydraulic wheeled box scraper
- Designed for 35 to 120 horsepower tractors
- 4” square tube, 3/8” end plates, & 1/4” moldboard
- Reversible cutting edge (Front Only)
- Tongue jack & safety chain – standard
- Hydraulic cylinder, hoses kit, and tires included
- 3/8” X 25 1/2” X 36” End Plate
- Tilt option available
Specifications
| Model | DS1-96 | DS1-120 | DS1-144 |
| Hitch Type | Clevis | Clevis | Clevis |
| Working Width | 96" | 120" | 144" |
| Tractor HP (Max) | 100 HP | 125 HP | 150 HP |
| Approx. Operating Weight (Non-Tilt) | 1,300 lbs | 1,450 lbs | 1,600 lbs |
| Approx. Operating Weight (Tilt) | 1,450 lbs | 1,600 lbs | 1,750 lbs |
| Beam Type | Tubular 4" sq. Beam | Tubular 4" sq. Beam | Tubular 4" sq. Beam |
| Capacity | 50 cu. ft. | 60 cu. ft. | 70 cu. ft. |
| Cutting Edges | 1/2" x 6' Reversible | 1/2" x 6' Reversible | 1/2" x 6' Reversible |
| End Plate Thickness | 3/8" | 3/8" | 3/8" |
| Moldboard Thickness | 1/4" | 1/4" | 1/4" |
| Assembly Time | 1 Hr. | 1 Hr. | 1 Hr. |
